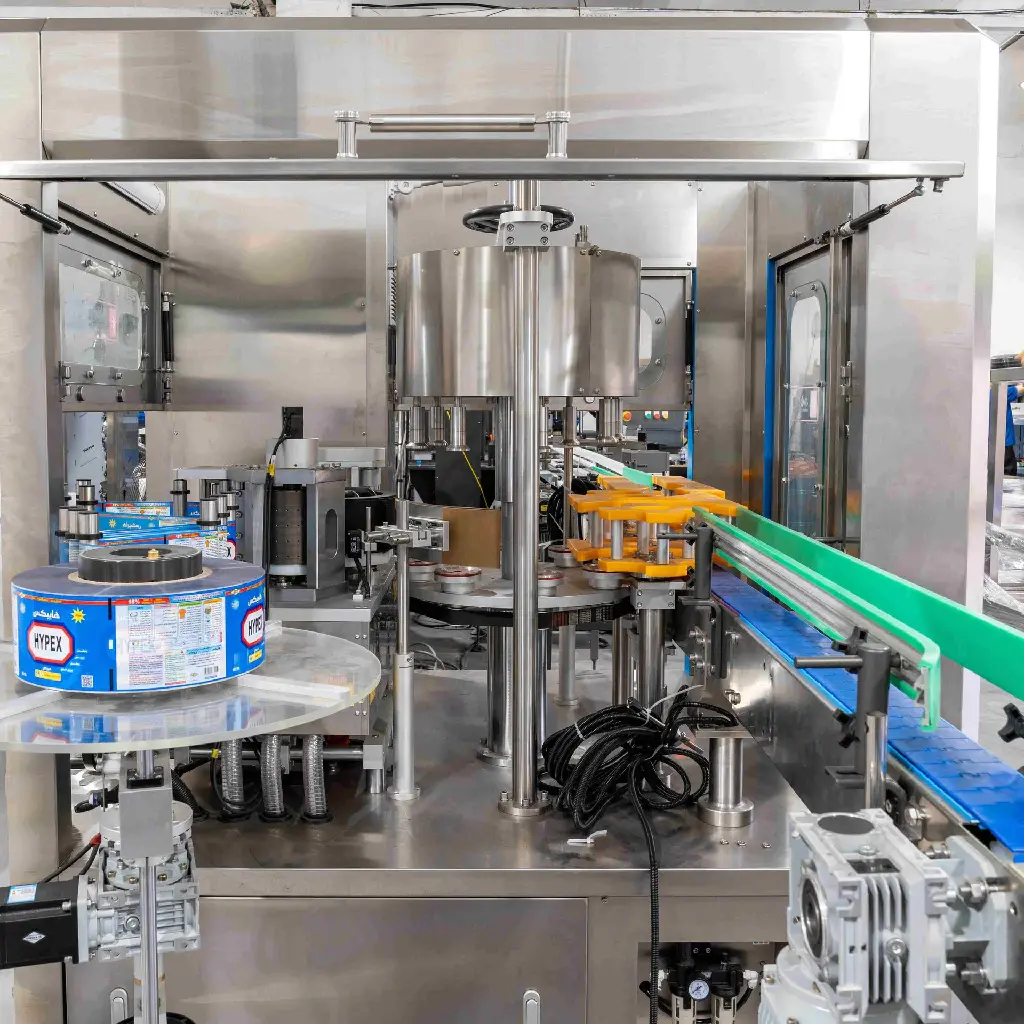

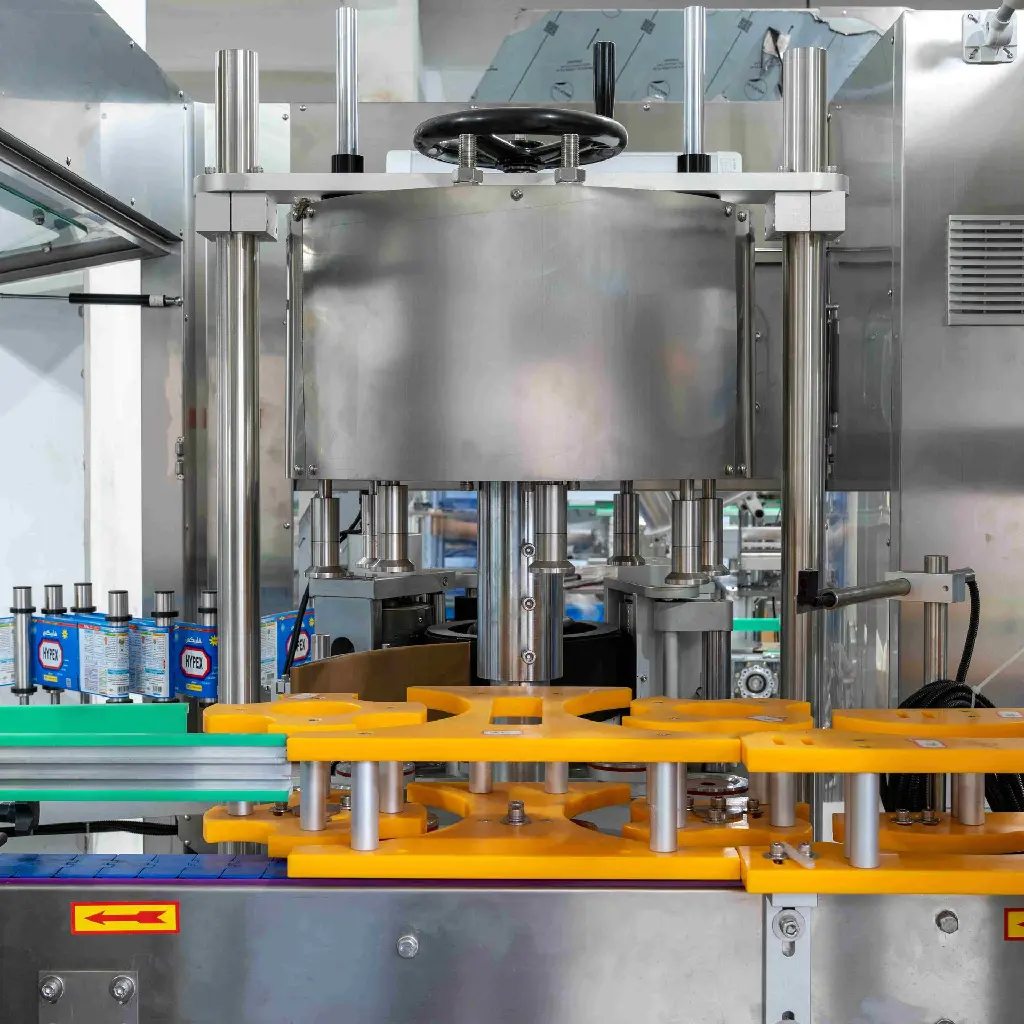

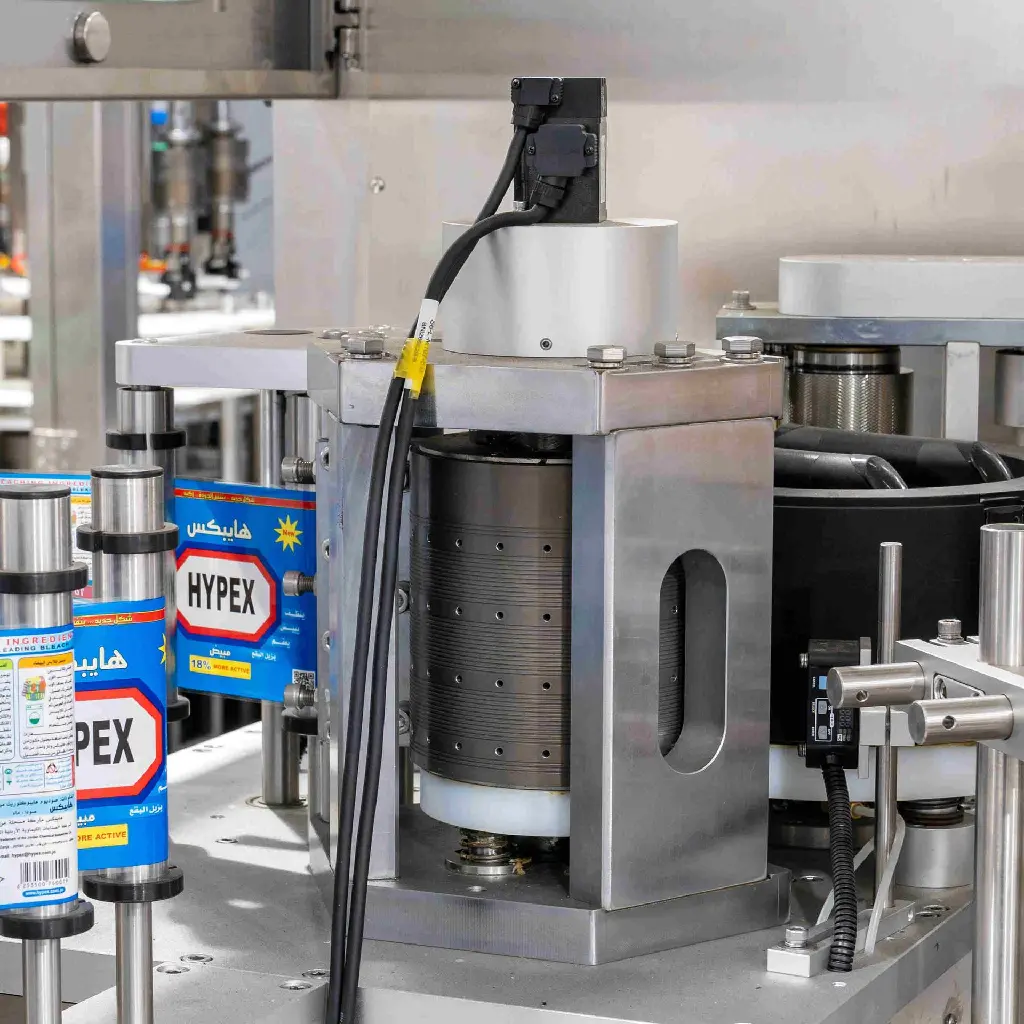

Automatic BOPP Hot-Melt Roll-Fed Labeling Machine for Plastic Bottles

0 review
Engineered for high-speed production, this Automatic BOPP Labeling Machine wraps BOPP film seamlessly around plastic bottles without wrinkles or misalignment. Using a precision rotary mechanism and static elimination, the machine ensures flawless label placement even during continuous operation. Widely used in the daily chemical industry, this Plastic Bottle Labeling Machine efficiently labels shampoos, body washes, lotions, and detergents.
Labeling Machine BOPP Labeling Machine
¥ 0.00 ¥ 0.00
  • Application
  • Automatic Degree
  • Warranty Period
  • Brand
Contact Us
Application Daily Chemical & Personal Care, Cosmetics & Beauty, Chemical & Agrochemical, Food & Beverage
Automatic Degree Fully Automatic
Warranty Period 1 Year
Brand RUN-TECH

Product Introduction

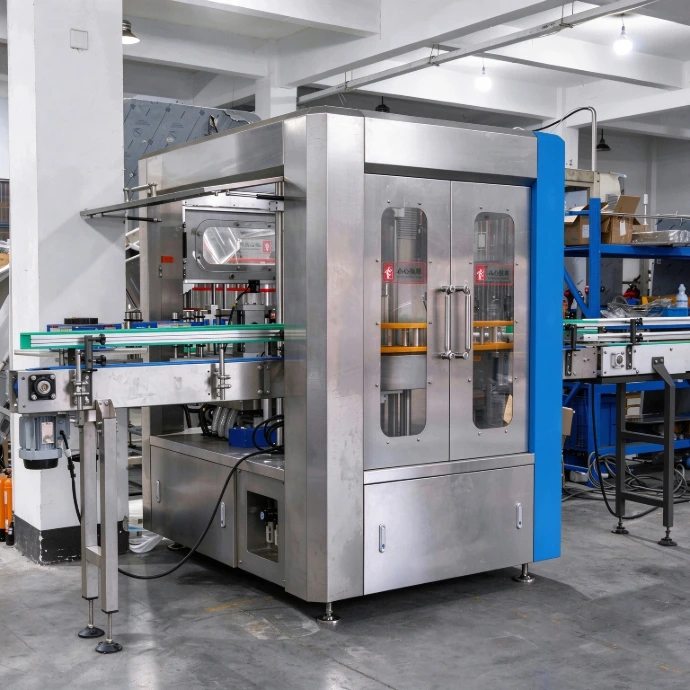

automatic bopp labeling machine

Automatic BOPP Labeling Machine

· Quick tool-free changeover for various plastic bottle geometries

· Specifically engineered for ultra-thin BOPP film and plastic bottless

· Advanced hot melt glue system for secure, wrinkle-free adhesion

· Integrated static elimination for precise label transfer

· Servo-driven label cutter for high-speed accuracy


 Contact us

Basic Information

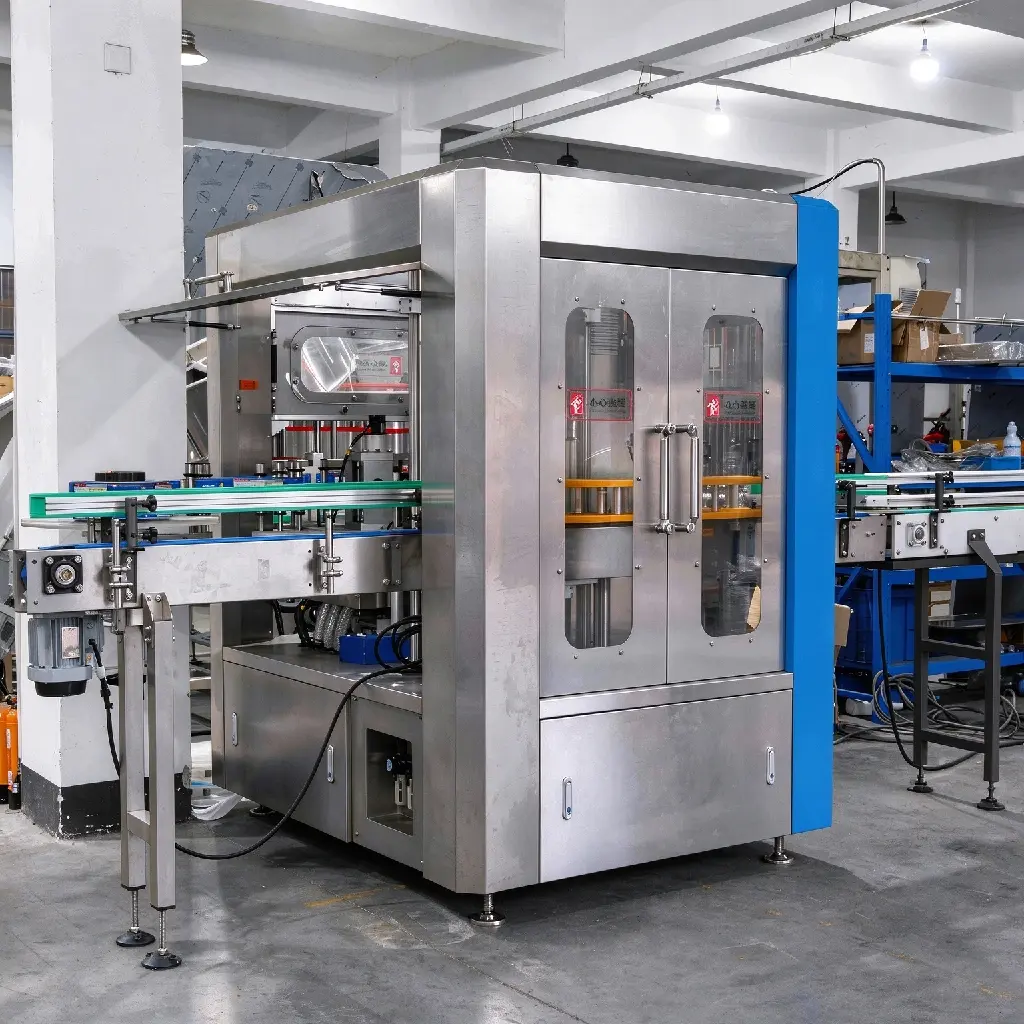

Automatic BOPP Labeling Machine

This Automatic BOPP Labeling Machine is purpose-built to meet the demanding requirements of high-speed plastic bottle packaging lines. BOPP film is exceptionally thin, highly transparent, and prone to static electricity, which makes standard labeling systems struggle with wrinkles and misalignment. Utilizing a precision hot melt glue system and an integrated static eliminator, this BOPP Labeling Machine ensures that every label wraps flawlessly around the lightweight plastic bottle. The equipment delivers high-speed, reliable performance for daily chemical, beverage, and food industries, drastically elevating the shelf appeal of your final products.



Core Components & Working Process

Working Process of the Automatic Labeler

 1.Bottle Infeed: Plastic bottles are spaced perfectly by the infeed screw and secured by bottle plates.

2.Glue Application: The hot melt system applies precise adhesive patterns to the BOPP label.

3.Synchronous Labeling: The vacuum drum rotates, transferring the label to the bottle at exactly the right moment.

4.Brush Down: A flexible brush ensures the thin BOPP film adheres smoothly without air bubbles.

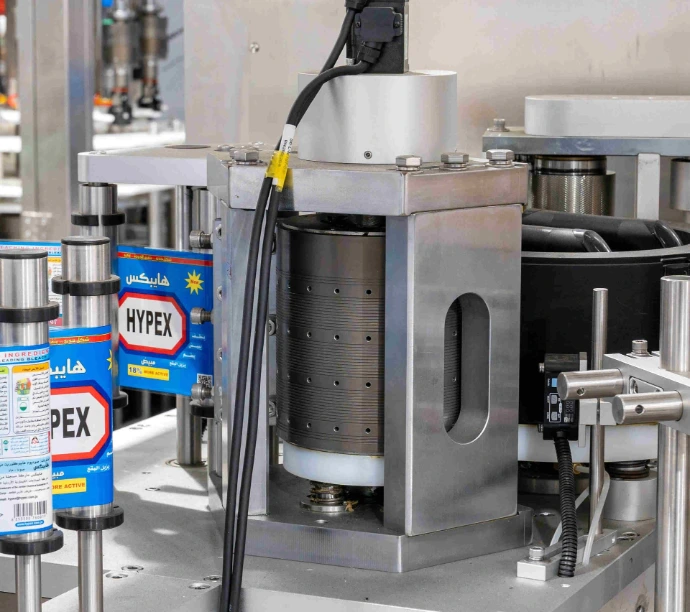

bopp hot melt labeling machine

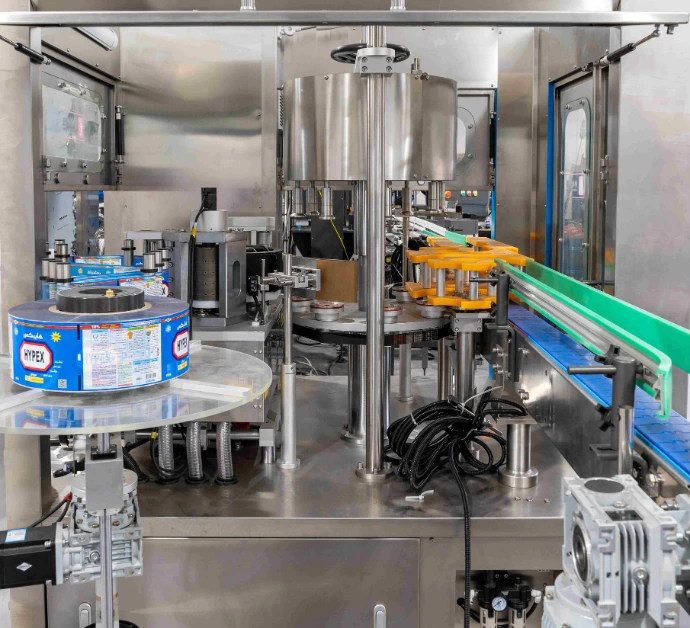

automatic plastic bottle labeling equipment

Core Components of this BOPP Labeling Equipment

The performance of this BOPP Film Labeling Machine relies on the integration of a servo-driven label cutter, a precise hot melt glue applicator, and a high-vacuum labeling drum. The cutter ensures clean edges on the ultra-thin film, while the glue roller applies a consistent, microscopic layer of adhesive at the leading and trailing edges.



Technical Parameters of the Automatic BOPP Labeling Machine

NO

Item

Description

1

Overall dimension

2400mm × 1600mm × 2700mm

2

Suitable bottle size

Φ40*80mm 到 Φ100*280mm

3

Suitable inner-plug size

Diameter of pumpcap: Φ25-40mm

Length of pumpcap: ≤ 250mm

4

No.of capping heads

4

8

10

5

Production Capacity

≤2500 bottles/hours

≤5000 bottles/hours

≤7200 bottles/hours

6

Power supply

AC 380V, 50Hz

7

Qualified rate of capping

≥98%(Container mouth center deviation less than 1mm, Container mouth face height deviation less than 1mm)

8

Machine power

4.5kw

9

Air operated resource

0.6Mpa clean and stable compressed air

11

Weight

About 4500Kg

Automatic BOPP Labeling Machine Applications by Industry

1. Daily Chemical & Personal Care

For shampoo, body wash, and detergent bottles. This Plastic Bottle Labeling Machine handles the high transparency of BOPP film flawlessly, giving products a premium, glossy look.

2. Food & Edible Oil

For cooking oil and sauce bottles. The equipment ensures the BOPP film wraps seamlessly around complex bottle geometries without leaving wrinkles that could trap moisture.

3. Beverage Industry

For mineral water and carbonated drink bottles. The BOPP Labeling Machine uses precise hot melt adhesion to withstand condensation and stay firmly attached to PET bottles.

4. Pharmaceutical & Chemical

For sanitizer and chemical bottles. Built with stainless steel structures, this Automatic Labeler operates reliably in demanding environments, maintaining high precision.

Performance & Quality

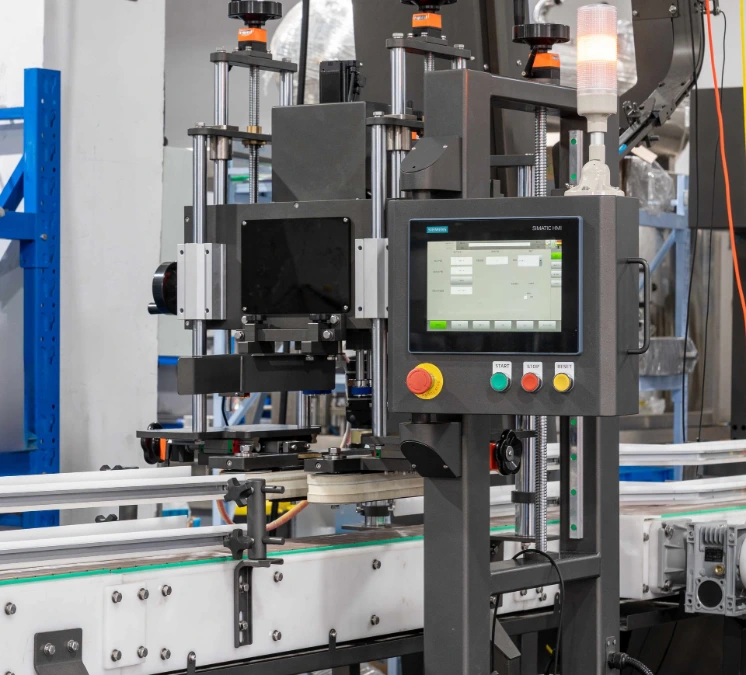

hot melt roll fed labeling machine

Eliminating Wrinkles on Ultra-Thin BOPP Film

Because BOPP film is extremely thin, any fluctuation in tension or speed causes wrinkles. This Automatic BOPP Labeling Machine features closed-loop tension control and a high-precision servo-driven cutter. It perfectly matches the label feed speed with the bottle rotation speed, guaranteeing a flawless, bubble-free wrap every time.

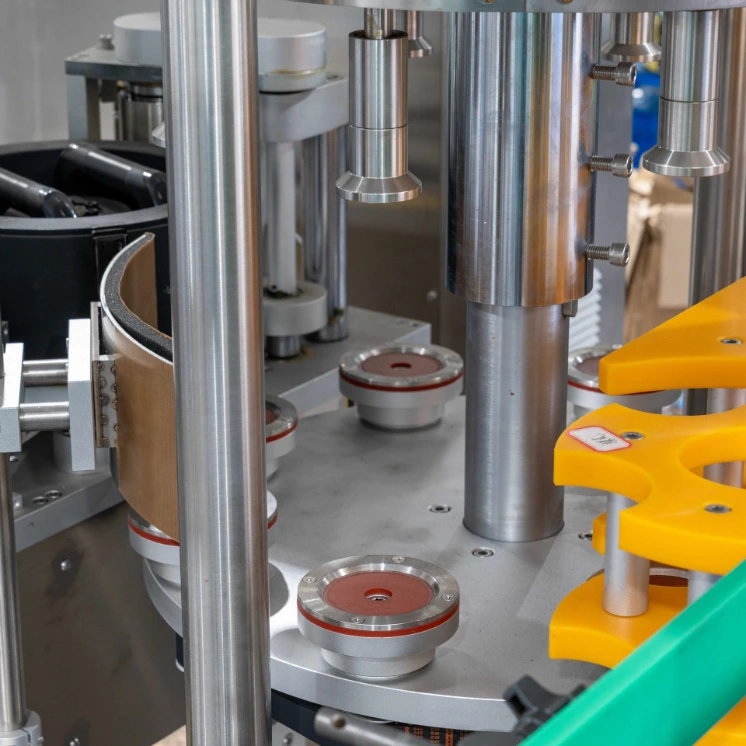

bopp labeling machine for pet bottles

Conquering Static Electricity on Plastic Bottles

Plastic bottles generate high static during high-speed transport, which makes thin BOPP labels stick to the wrong places. The equipment is integrated with a dual-zone static elimination system. This neutralizes the static charge on both the bottle surface and the label, ensuring perfectly accurate placement.

FAQ

1.Why is hot melt glue recommended for BOPP labels on plastic bottles?

Hot melt glue provides a stronger bond and is more cost-effective at high speeds. This Automatic BOPP Labeling Machine ensures labels stay firmly attached without peeling, even on bottles with condensation.

2.Ultra-thin BOPP film can break or wrinkle at high speeds. How is this prevented?

The machine is equipped with a servo-driven tension control system. It automatically adjusts the film tension based on running speed, preventing breakage from over-pulling or wrinkles from uneven tension.

3.Plastic bottles generate static electricity that causes misaligned labels. How do you solve this?

This Plastic Bottle Labeling Machine features a built-in static eliminator. It neutralizes the static charge on both the bottle and the label before application, ensuring precise positioning every time.

4. If the hot melt glue temperature fluctuates, will it affect labeling?

No. The machine uses automatic constant temperature control. If the temperature becomes abnormal, it will automatically stop and alarm to prevent poor adhesion or burning the film.

5.Can this BOPP Labeling Machine apply transparent labels?

Yes. It is equipped with a high-precision glue roller that applies a clean, even layer of adhesive, leaving no visible smudges even on clear films.
