Stable Running Automatic Trigger Pump Capping Machine For Detergent Bottle

0 review
Designed for the daily chemical industry, this Stable Running Automatic Trigger Pump Capping Machine efficiently tightens caps on detergent bottles. Using a continuous rotary structure and servo control, this Automatic Trigger Capping Machine ensures high-speed, stable operation without damaging the pump heads. It is ideal for packaging products like laundry liquid, dish soap, and household cleaners.
Trigger Pump Capping Machine Automatic Trigger Pump Capping Machine
¥ 0.00 ¥ 0.00
  • Application
  • Capacity
  • Automatic Degree
  • capping method
  • Brand
Contact Us
Application Daily Chemical & Personal Care, Cosmetics & Beauty, Chemical & Agrochemical, Food & Beverage
Capacity At 330 ml: around 6,000 bottles/hour (glass cleaner )
Automatic Degree Fully Automatic
capping method rotary capping type
Brand RUN-TECH

Product Introduction

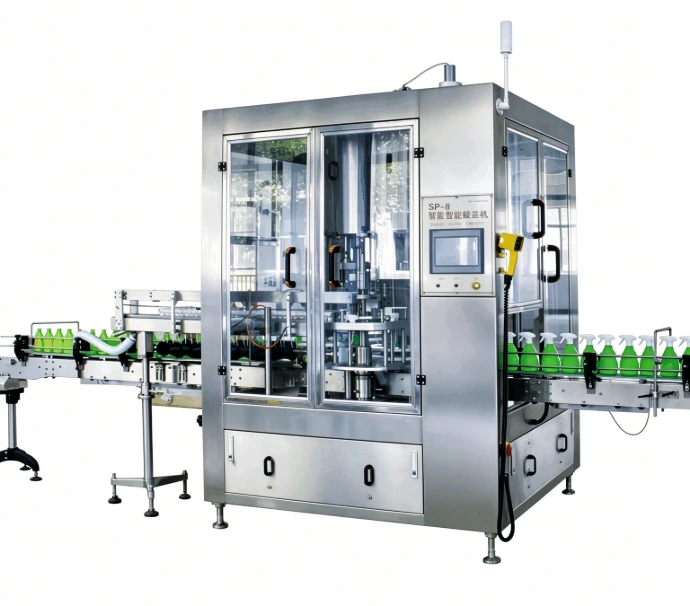

Stable automatic trigger pump capping machine with gentle dip-tube insertion

Automatic Trigger Pump Capping Machine

· High-Torque Sealing for Heavy Bottles

· Precise Sprayer Nozzle Orientation

· Dip Tube Anti-Bending Guidance

· Anti-Leakage Closed-Loop Control

Button

Basic Information

Automatic Trigger Pump Capping Machine

This Automatic Trigger Pump Capping Machine is engineered specifically for packaging lines handling household cleaners, garden sprays, and automotive fluids. Integrating specialized trigger sprayer capping equipment technologies, it perfectly solves the challenge of orienting asymmetric sprayer heads on heavy plastic containers. The heavy-duty pump capping mechanism features a high-torque servo system and robust bottle stabilization clamps, ensuring leak-proof sealing without deforming the bottle threads. Designed for seamless integration into any detergent bottle capping system, it easily connects with your existing filling and labeling lines, helping manufacturers transition from manual labor to high-speed, automated production with total accuracy.

Automatic Trigger Pump Capping Machine for Your Production Scale

Industrial detergent bottle trigger sprayer capper with precise nozzle orientation

1.Semi-Automatic Trigger Capper

Ideal for low capacity and frequent changes. Manual placement with pneumatic tightening makes this trigger pump capper highly flexible and cost-effective for small batches.

2. Automatic Inline Sprayer Capper

Suited for medium capacity and mixed SKUs. This compact inline sprayer closing machine offers fast changeovers and precise orientation with a small footprint.

3. High-Speed Rotary Trigger Capper

Built for stable, high-volume production. This rotary trigger capping machine uses synchronized feeding and multi-station processing for maximum output.

4. Flexible Pump & Sprayer System

Engineered for mixed production lines. This versatile closure applicator accommodates both lotion pumps and trigger sprayers by simply swapping modular jaws.

Automatic Trigger Pump Capping Machine Applications by Industry

1.Heavy-Duty Kitchen & Bathroom Degreasers

When handling aggressive acidic or alkaline cleaning liquids, this trigger sprayer cap tightener utilizes anti-corrosion clamps and high-torque sealing to prevent chemical degradation and ensure zero leakage during transport.



3. Commercial & Institutional Cleaning Suppliers

In high-volume supply chains, maintaining continuous output is critical. This heavy-duty spray capping equipment provides robust bottle stabilization, safely guiding long dip tubes into 1-gallon containers at rapid speeds without bending.


4. Garden, Pest-Control & Automotive Fluids

When packaging insecticides or wheel cleaners, safety and seal integrity are paramount. Our detergent bottle sealing machine applies precise closed-loop torque, preventing toxic liquids from evaporating or leaking during long-distance logistics.



2. Bulk Laundry & Surface Sprays

For large-capacity detergent bottles, the nozzle orientation capping system guarantees every trigger faces the exact same direction. This optimizes shelf display aesthetics and prevents downstream labeling misalignment.

Technical Parameters of the Automatic Trigger Pump Capping Machine

Parameter

Source Specification

Applicable bottle

Customized according to customer requirements

Number of capping heads

6 heads

Main-machine dimensions - parameter table

2,000 x 1,800 x 2,950 mm (reference)

Main-machine dimensions - later source section

2,000 x 1,650 x 2,900 mm

Main-machine power

5 kW

Main-machine weight

4,000 kg

Torque-control method

Permanent-magnet clutch

Production capacity

55-60 bottles/minute

Required air supply

0.5-0.6 MPa clean, stable compressed air

Power supply

380 V, 50 Hz

Operating noise

80 dB measured within 1 m of the machine; later source section states less than 82 dB(A) under load

Conveyor height

950 +/- 50 mm

Adjustable conveyor width

50-100 mm

Compressed-air consumption

0.009 m3/min at the stated clean compressed-air requirement

Machine construction

Main body: SUS304, carbon steel and aluminum alloy; outer frame: SUS304 and acrylic doors; cap-contact parts: polyurethane

Performance & Quality

Performance: Proven by Real-World Leak Tests

The true performance of a heavy-duty pump capper cannot be judged solely by static lab torque; it must withstand dynamic stress. For large-capacity detergents, seal integrity must remain reliable after temperature fluctuations and transport vibrations. We conduct rigorous inverted pressure tests using actual detergent bottles and chemical liquids. This ensures the trigger sprayer capping equipment delivers a leak-proof sealing that remains intact from the factory to the retail shelf, drastically reducing customer complaints caused by leakage.

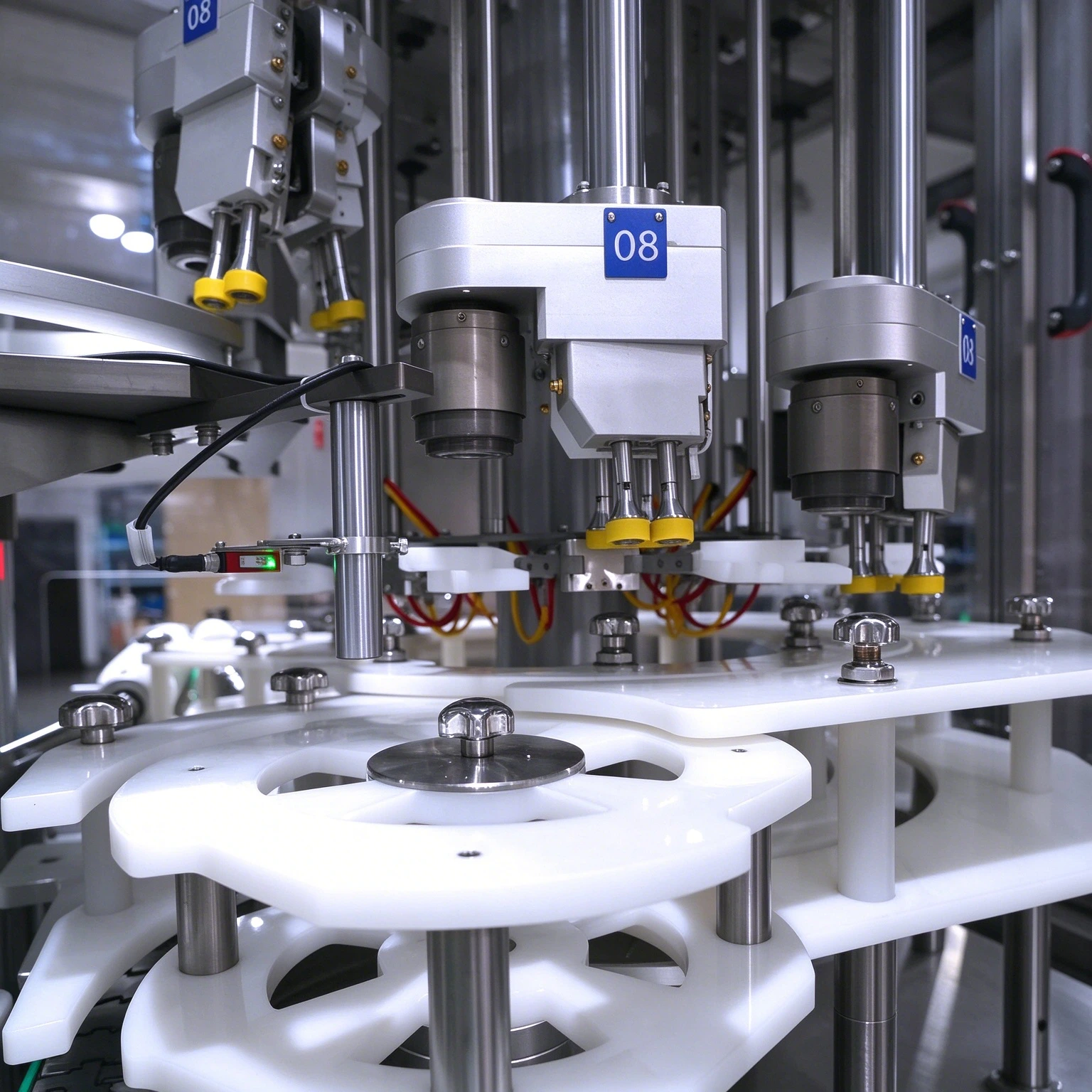

Non-scratch trigger pump capping machinery for household cleaner bottles

Quality: Defined by Trigger Functionality and Orientation

A perfectly sealed bottle is useless if the trigger mechanism is jammed or the nozzle faces the wrong direction. Beyond standard torque monitoring, our high-torque capping equipment integrates precise optical inspection systems. This ensures the sprayer cap orienting machine perfectly aligns every nozzle for optimal shelf display while maintaining a smooth trigger pull for the end consumer. This holistic quality control makes the automated trigger pump capping machine a reliable asset for brand protection.

Brand-Name Components of the Automatic Trigger Pump Capping Machine


1

PLC

Siemens

S7-200 SMART

set

Germany

2

Touch screen

Siemens

SMART 1000 IE V3

set

Germany

3

Frequency inverter

Schneider

ATV12 series

set

France

4

Alarm light

Schneider

XVGB3SM

piece

France

5

Photoelectric sensor

Leuze

PRK5 series

piece

Germany

6

Proximity switch

Leuze

IS 118MM series

piece

Germany

7

Air-pressure switch

Airtac

PK506

piece

Taiwan

8

Pressure filter

Airtac

GFR400

piece

Taiwan

9

Solenoid valve

Airtac

4V110

set

Taiwan

10

Encoder

Omron

E6B2

set

Japan

11

Relay

Omron

G6D-F4B-DC24V

set

Japan

12

Miniature circuit breaker

Schneider

OSMC series

set

France

13

Switch-mode power supply

Delta

DRP024V series

piece

Taiwan

FAQ

1. How does the machine ensure consistent nozzle orientation for every trigger pump after capping?

The equipment uses optical sensors to orient the caps during feeding. Once the threads are fully engaged, the system compensates for minor angular differences via servo torque control, ensuring highly uniform nozzle directions to meet retail shelf display requirements.

2. How does this machine handle detergent trigger caps with long dip tubes?

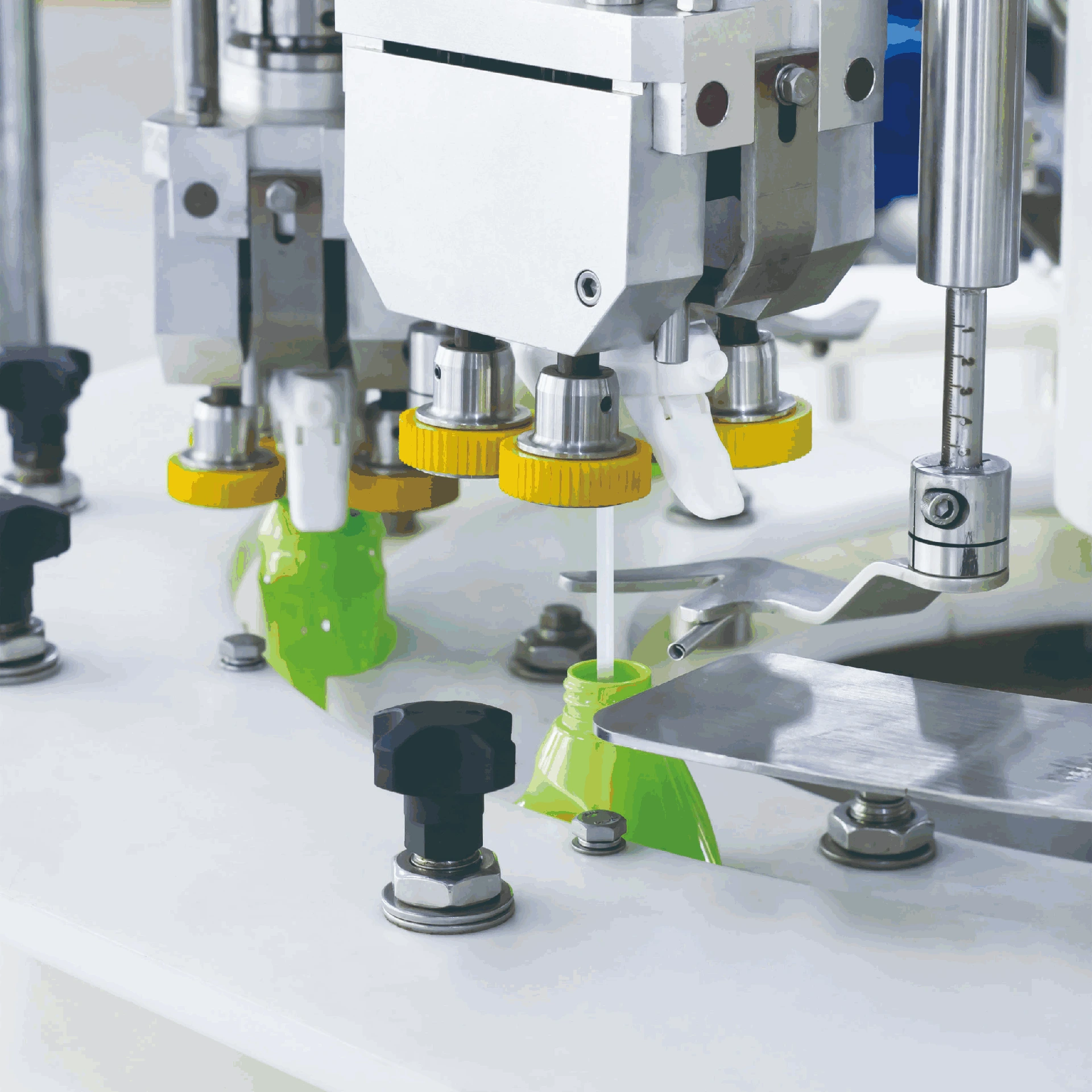

This heavy-duty pump capper is equipped with a dedicated dip-tube guiding mechanism before pressing down. The guide rails straighten and accurately insert the long tube into the bottle mouth; combined with buffered pressing technology, it completely prevents the tube from bending or breaking inside the bottle.

3. How do you prevent large detergent bottles from slipping when applying high-torque sealing?

For large-capacity and unstable packaging, the detergent bottle capping system is equipped with high-strength synchronous side clamping belts and custom bottle holders. This ensures the bottle is firmly locked in place during high-torque tightening, preventing it from rotating with the cap.

4. How is leak-proof sealing guaranteed without over-tightening and damaging the plastic threads?

The core high-torque capping equipment utilizes closed-loop servo control. When the preset sealing torque is reached, the motor stops instantly, ensuring absolute leak-proof sealing while preventing thread stripping or crushing caused by over-tightening.

5. Can this machine handle both standard lotion pumps and trigger sprayers?

Yes. As a highly flexible piece of trigger sprayer capping equipment, it can quickly switch between standard pump heads and asymmetric trigger sprayers by simply changing the modular gripping jaws and cap sorting bowls, enabling flexible multi-product production.
