Rotary Automatic Spray Bottle Trigger Capping Machine For Cleaner Bottles

0 review
Engineered for high-speed production, this Rotary Automatic Spray Bottle Trigger Capping Machine is designed for cleaner bottles. Utilizing a continuous rotary structure and servo torque control, this Automatic Trigger Capping Machine ensures stable operation without damaging the trigger sprayers. Ideal for the daily chemical industry, it efficiently packages glass cleaners, bathroom sprays, and disinfectants.
Trigger Capping Machine Rotary Trigger Capping Machine
¥ 0.00 ¥ 0.00
  • Application
  • Automatic Degree
  • Capacity
  • Brand
  • Material
Contact Us
Application Daily Chemical & Personal Care, Cosmetics & Beauty, Chemical & Agrochemical
Automatic Degree Fully Automatic
Capacity 50-65b/min
Brand RUN-TECH
Material PVC,PET,OPSetc.

Product Introduction

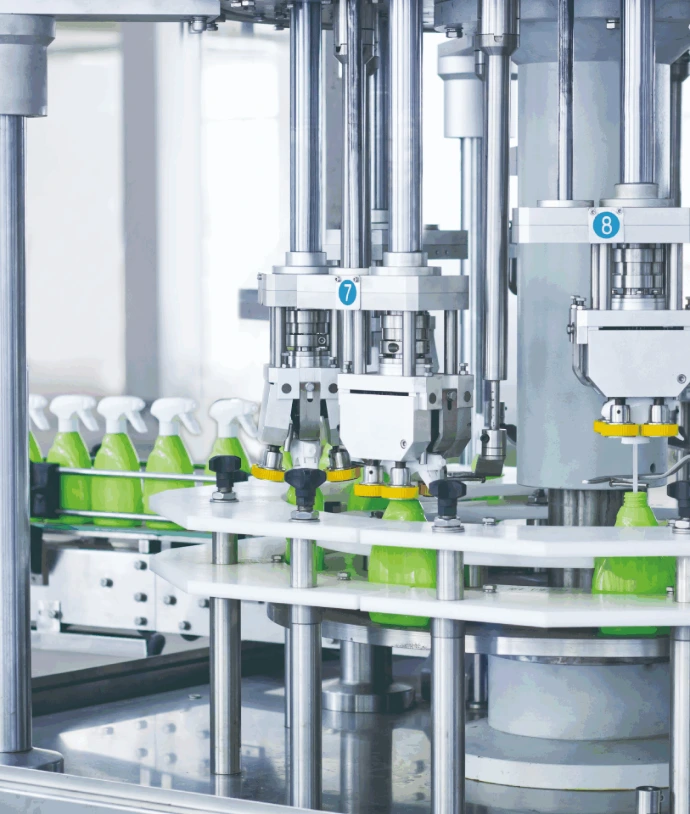

automatic rotary trigger spray capping machine for household cleaner bottles

Automatic Spray Bottle Trigger Capping Machine

· Continuous Rotary Capping Structure

· High-Speed Trigger Feeding System

· Precise Torque for Cleaner Bottles

· Stable Bottle Centrifugal Control

 Contact us

Basic Information

Automatic Spray Bottle Trigger Capping Machine

The Rotary Automatic Spray Bottle Trigger Capping Machine is purpose-built for the high-volume manufacturing of household sprays. This Rotary Trigger Capping Machine utilizes a continuous multi-station rotary turret, making it exceptionally suited for packaging lines producing glass cleaners, multi-surface sprays, and bathroom sanitizers. The system seamlessly integrates with upstream filling and downstream labeling lines. By combining a high-speed trigger feeding system with smooth rotary indexing, it ensures continuous, leak-free sealing of cleaner bottles, significantly elevating your factory's throughput.

Automatic Spray Bottle Trigger Capping Machine for Your Production Scale

1. Semi-Automatic Spray Bottle Capper

Designed for startups and low-volume runs. Operators manually place the trigger caps, while the capping head delivers consistent motor-driven torque.

automatic rotary trigger spray capping machine for household cleaner bottles

2. Inline Automatic Trigger Capping Machine

Built for medium-capacity cleaner production. It offers flexible adjustments and quick changeovers for mixed SKUs of spray bottles.


3. High-Speed Rotary Trigger Capping Equipment

The flagship model for mass production. Utilizing a multi-station carousel, it synchronizes continuous bottle feeding and high-speed rotary capping.


4. Customizable Cleaner Bottle Capper

Engineered for unusual spray bottle shapes or non-standard trigger designs. It provides customized fixtures and specialized feeding tracks to ensure stable operation.

Automatic Spray Bottle Trigger Capping Machine Applications by Industry

1.Glass & Window Cleaners

These products require high-clarity packaging and secure sealing. The Rotary Automatic Trigger Capping Machine applies precise torque to prevent trigger caps from loosening during transport, keeping shelves clean.

2. Bathroom & Toilet Cleaners

Often containing aggressive chemicals, these sprays require durable handling. This Cleaner Bottle Capping Equipment features corrosion-resistant SUS304/316L components to ensure long-term stability.

3. Kitchen Degreasers

Heavy-duty triggers need a firm grip. The Spray Bottle Trigger Capper utilizes anti-slip jaws that grasp the trigger securely without crushing the delicate spray mechanism.

4. Multi-Purpose Household Sprays

Fast changeovers are essential for mixed production. The Automatic Rotary Capping Machine adapts rapidly to different bottle heights, maximizing the flexibility of your packaging line.

Technical Parameters of the Automatic Spray Bottle Trigger Capping Machine

Parameter

Source Specification

Applicable bottle

Customized according to customer requirements

Number of capping heads

6 heads

Main-machine dimensions - parameter table

2,000 x 1,800 x 2,950 mm (reference)

Main-machine dimensions - later source section

2,000 x 1,650 x 2,900 mm

Main-machine power

5 kW

Main-machine weight

4,000 kg

Torque-control method

Permanent-magnet clutch

Production capacity

55-60 bottles/minute

Required air supply

0.5-0.6 MPa clean, stable compressed air

Power supply

380 V, 50 Hz

Operating noise

80 dB measured within 1 m of the machine; later source section states less than 82 dB(A) under load

Conveyor height

950 +/- 50 mm

Adjustable conveyor width

50-100 mm

Compressed-air consumption

0.009 m3/min at the stated clean compressed-air requirement

Machine construction

Main body: SUS304, carbon steel and aluminum alloy; outer frame: SUS304 and acrylic doors; cap-contact parts: polyurethane

Content Block for Automatic Spray Bottle Trigger Capping Machine

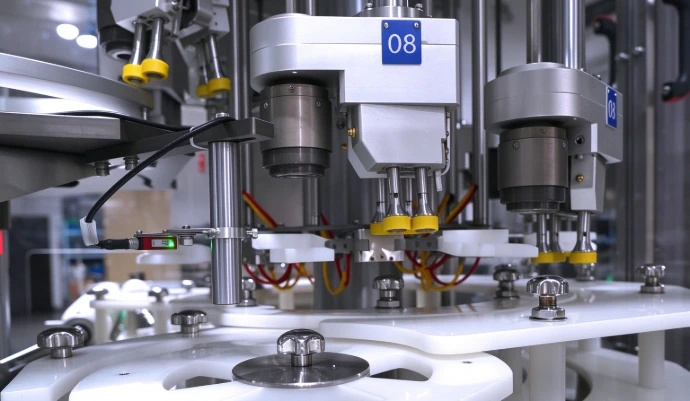

gentle mechanical dip-tube guidance and trigger pump infeed mechanism

Mastering Centrifugal Force at High Speeds

Unlike linear systems, a Rotary Automatic Spray Bottle Trigger Capping Machine operates with continuous rotational movement. This can generate centrifugal forces that challenge bottle stability. The machine employs precision-engineered star wheels and synchronized guide rails to lock the cleaner bottles firmly in place during the rotation, preventing tipping or liquid spillage even at maximum RPMs.

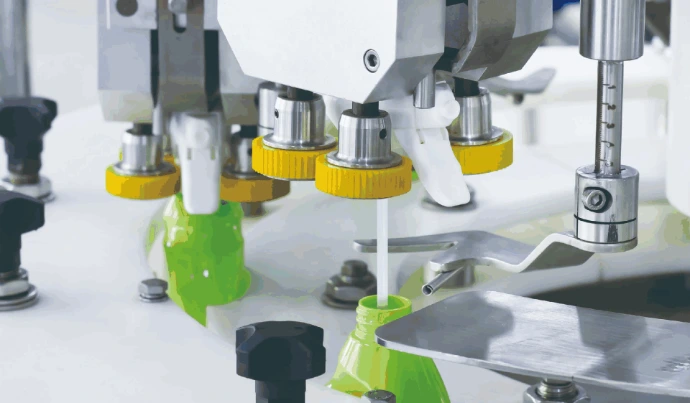

gentle mechanical dip-tube guidance and trigger pump infeed mechanism

Ensuring Airtight Seals on Slippery Cleaner Surfaces

Household cleaners often leave a thin residue around the bottle neck after filling, causing standard capping heads to slip. This Rotary Trigger Capping Machine is equipped with high-friction, self-centering chuck jaws. Combined with servo-driven torque, the system ensures the trigger cap engages perfectly with the thread, eliminating cross-threading and guaranteeing an airtight, leak-free seal for every cleaner bottle.

Brand-Name Components of the Automatic Spray Bottle Trigger Capping Machine

No.

Component

Brand

Model

Unit

Origin

1

PLC

Siemens

S7-200 SMART

set

Germany

2

Touch screen

Siemens

SMART 1000 IE V3

set

Germany

3

Frequency inverter

Schneider

ATV12 series

set

France

4

Alarm light

Schneider

XVGB3SM

piece

France

5

Photoelectric sensor

Leuze

PRK5 series

piece

Germany

6

Proximity switch

Leuze

IS 118MM series

piece

Germany

7

Air-pressure switch

Airtac

PK506

piece

Taiwan

8

Pressure filter

Airtac

GFR400

piece

Taiwan

9

Solenoid valve

Airtac

4V110

set

Taiwan

10

Encoder

Omron

E6B2

set

Japan

11

Relay

Omron

G6D-F4B-DC24V

set

Japan

12

Miniature circuit breaker

Schneider

OSMC series

set

France

13

Switch-mode power supply

Delta

DRP024V series

piece

Taiwan

Core Components

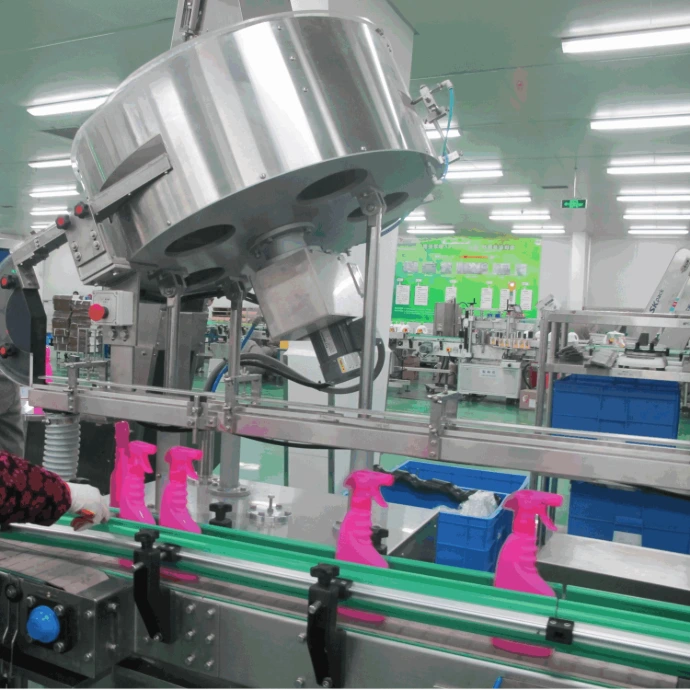

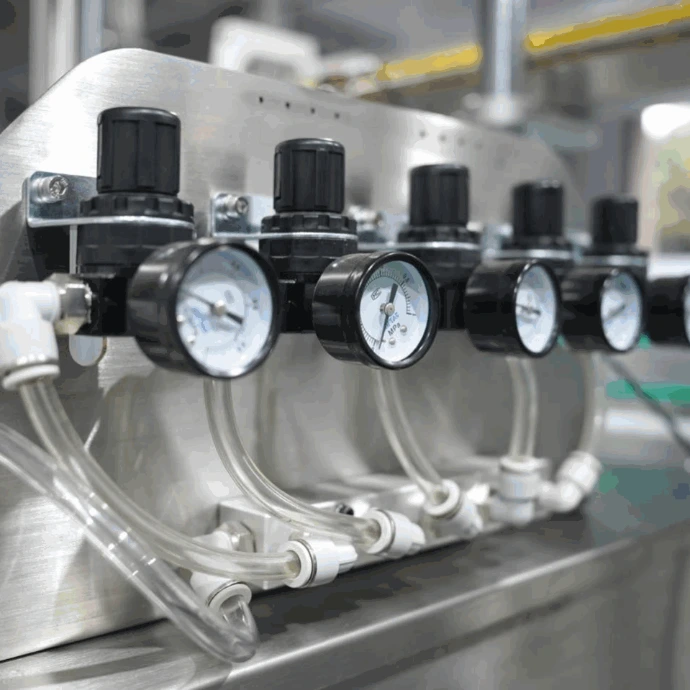

360-degree nozzle orientation capping head for cleaner spray bottles 360-degree nozzle orientation capping head for cleaner spray bottles

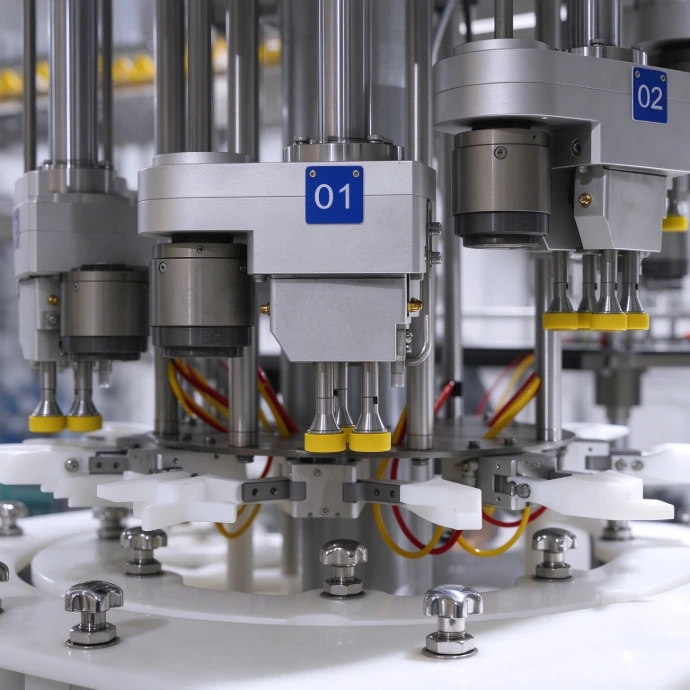

high-speed rotary starwheel indexing system for flat and round bottles high-speed rotary starwheel indexing system for flat and round bottles

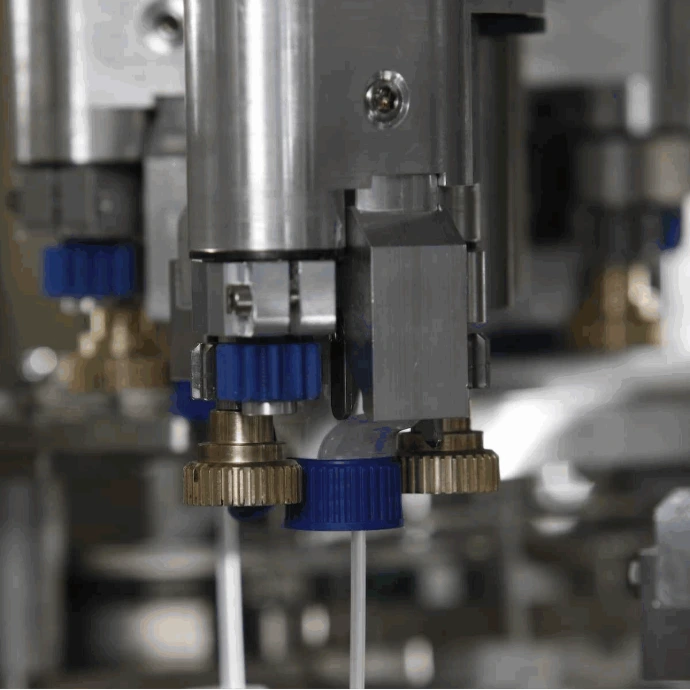

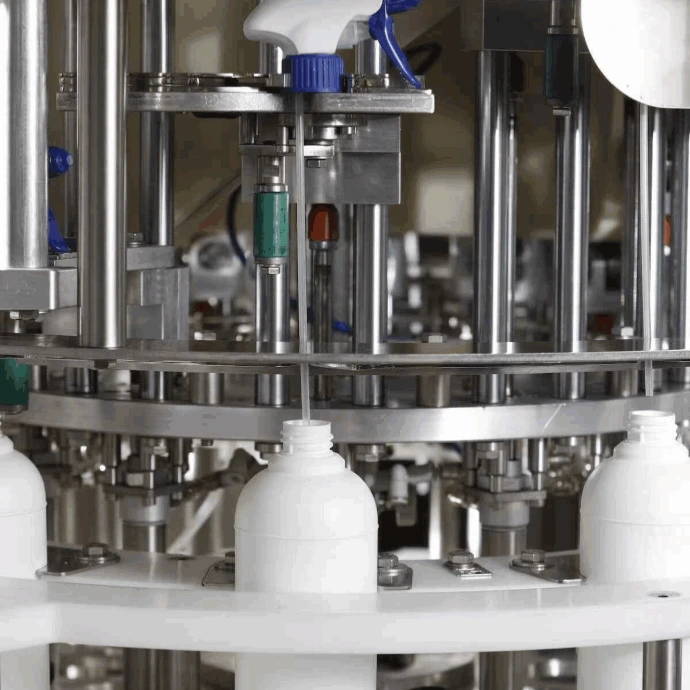

custom-molded anti-scratch tightening wheels for plastic trigger sprayers custom-molded anti-scratch tightening wheels for plastic trigger sprayers

FAQ

1. How does the rotary design handle lightweight cleaner bottles?

The Rotary Trigger Capping Machine uses adjustable neck supports and synchronized star wheels to stabilize lightweight bottles during the rotation, eliminating tipping risks.

2. Can it handle trigger caps of different sizes on the same line?

Yes. This Cleaner Bottle Capper allows for tool-free adjustments of the capping head and guide rails, enabling quick switching between different trigger cap specifications.

3. What if there is liquid residue around the bottle neck?

The Spray Bottle Trigger Capper uses a soft-contact, high-friction chuck design that grips the trigger firmly without slipping, even if there is minor liquid residue on the bottle neck.

4. Is the nozzle direction of the trigger cap controlled?

Yes. The Rotary Automatic Trigger Capping Machine features an optional orientation control system to ensure all trigger sprayers face the same direction after capping, enhancing retail shelf appeal.

5. How do you prevent cross-threading at high rotary speeds?

We utilize servo-driven descending heads. The Automatic Rotary Capping Machine ensures the cap is perfectly seated vertically before applying torque, completely avoiding cross-threading.
