Liquid Dispenser Pump Capping Machine for Lotion Bottles

0 review

Pump Capping Machine for Stable Long Dip Tube Processing and Threaf Engagement for Lotion, Dispenser and Trigger pump

Lotion pump capping machine Automatic Pump Cap Capping Machine

Application
- Daily Chemical & Personal Care
- Cosmetics & Beauty
Cap Type
- Screw Cap
- Trigger Spray / Lotion Pump
capping method
- rotary capping type
- inline capping type
Capacity
- 60-70b/min
Brand
- RUN-TECH

Specifications

Application	Daily Chemical & Personal Care, Cosmetics & Beauty
Cap Type	Screw Cap, Trigger Spray / Lotion Pump
capping method	rotary capping type, inline capping type
Capacity	60-70b/min
Brand	RUN-TECH

Product Introduction

Automatic Pump Capping Machine

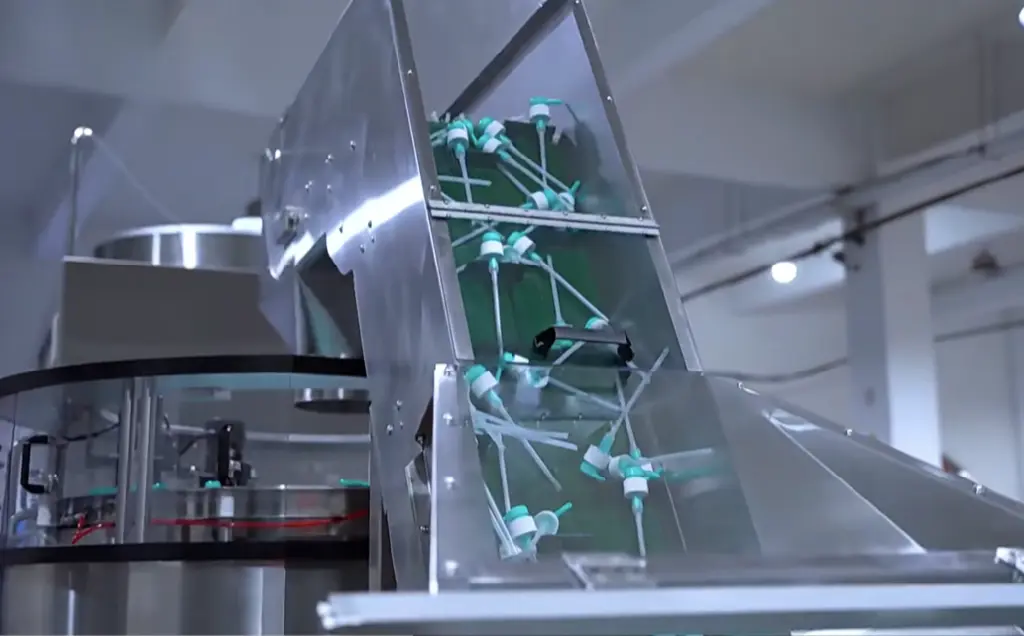

· Automatic Cap Feeding and Sorting

· Precise Torque Control System

· Suitable for Multiple Pump Cap Sizes

· Quick Format Changeover

· Sample-Based Customization

Learn more

Basic Information

Automatic Pump Capping Machine

The Automatic Pump Capping Machine is a highly versatile solution engineered for medium to high speed packaging lines in the daily chemical, pharmaceutical, and personal care sectors. It is designed to handle various pump caps, including lotion pumps and trigger sprayers, with exceptional stability. It is also targeted at brand manufacturers, OEM/ODM facilities, contract packagers, importers, and line integrators, helping customers make a successful transition from manual production to automatic operation. Whether you need a standalone unit or a fully integrated line, this pump capping machine seamlessly connects with filling, labeling, and conveyor systems. It effectively reduces manual labor and delivers consistent, airtight sealing to maximize your overall production efficiency.

Automatic Pump Capping Machine for Your Production Scale

Semi-Automatic Pump Capping Machine

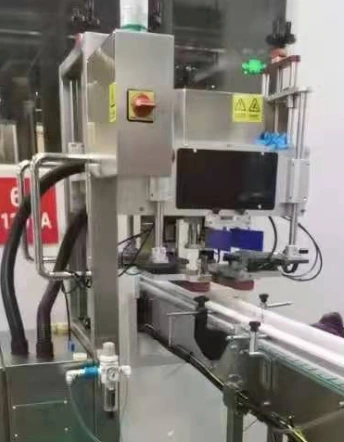

Ideal for startups and low-volume production. Operators manually place the pump caps, while the machine handles the tightening with consistent motor-driven torque. It offers an economical entry point into automated capping.

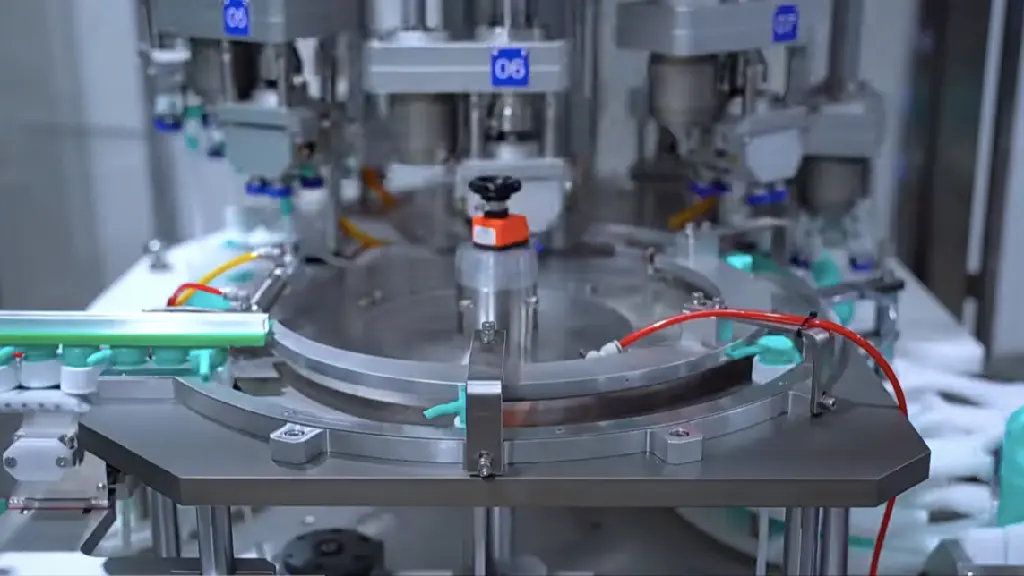

Standard Rotary Pump Capping Machine

Best suited for medium-capacity lines with mixed SKU schedules. This rotary model features a compact footprint, intuitive adjustments, and rapid changeover capabilities without the need for complex tools

High-Speed Rotary Pump Capping Machine

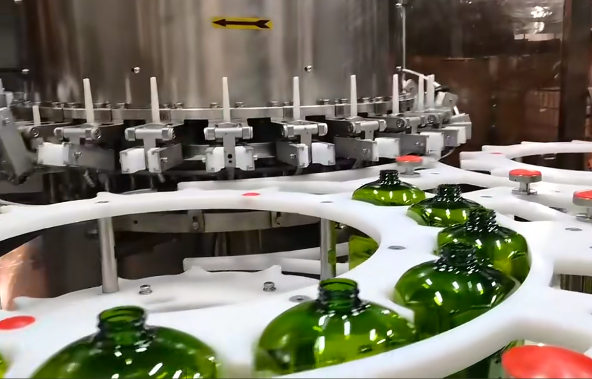

Built for large-scale, continuous production. Utilizing a multi-station rotary platform, it synchronizes bottle feeding and cap tightening to achieve unmatched high-speed throughput.

Customizable Pump Capping Machine

Designed for unique bottle shapes or special pump closures. This flexible platform allows tailored fixtures and feeding systems, accommodating specific packaging requirements while saving costs.

Technical Parameters for Pump Capping Machine

Parameter	Source Specification
Applicable bottle	Customized according to customer requirements
Number of capping heads	6 heads
Main-machine dimensions - parameter table	2,000 x 1,800 x 2,950 mm (reference)
Main-machine dimensions - later source section	2,000 x 1,650 x 2,900 mm
Main-machine power	5 kW
Main-machine weight	4,000 kg
Torque-control method	Permanent-magnet clutch
Production capacity	55-60 bottles/minute
Required air supply	0.5-0.6 MPa clean, stable compressed air
Power supply	380 V, 50 Hz
Operating noise	80 dB measured within 1 m of the machine; later source section states less than 82 dB(A) under load
Conveyor height	950 +/- 50 mm
Adjustable conveyor width	50-100 mm
Compressed-air consumption	0.009 m3/min at the stated clean compressed-air requirement
Machine construction	Main body: SUS304, carbon steel and aluminum alloy; outer frame: SUS304 and acrylic doors; cap-contact parts: polyurethane

Content Block for Automatic Pump Capping Machine

Evaluating Real Throughput Over Rated Speed

When selecting a pump capping machine, buyers should focus on the actual output of compliant, leak-free products rather than a theoretical speed on a nameplate.RUN-TECH evaluates actual capacity under real production conditions, taking into account bottle stability, pump cap consistency, and upstream/downstream line conditions. Evaluating real accepted output with RUN-TECH provides a reliable foundation for your capacity planning and labor allocation.

Achieving Consistent Quality Beyond Torque Settings

Torque is just one factor of a high-quality finish. Buyers must also consider thread engagement depth, cap orientation, and the absence of cross-threading or tube pinching. The equipment should be verified under actual production conditions using your specific bottles and pump caps to ensure the machine can handle the full specification range without compromising quality.

Automatic Pump Capping Machine Applications by Industry

Home Care & Cleaning Products

Dish soaps, surface cleaners, and laundry detergents require reliable pump capping to prevent leakage. This machine handles diverse bottle shapes and chemical formulations with stable torque, and ensures clean presentation and safe transport for retail channels.

Cosmetics & Personal Care

Shampoos, lotions, and body washes often utilize pump dispensers. This equipment delivers gentle handling to prevent cap scratches while ensuring consistent tightening, meeting the high appearance standards required by cosmetic brands.

Pharmaceutical & Healthcare

Sanitizers and medical liquids demand precision and hygiene. With its stainless steel contact parts and precise torque control, the capper ensures airtight sealing for safety and regulatory compliance.

Automotive & Industrial Chemicals

Detailing sprays and industrial maintenance fluids often require durable pump closures. The machine's robust construction and corrosion-resistant options allow it to operate reliably in demanding factory environments.

Configurations for Automatic Pump Capping Machines

No.	Component	Brand	Model	Unit	Origin
1	PLC	Siemens	S7-200 SMART	set	Germany
2	Touch screen	Siemens	SMART 1000 IE V3	set	Germany
3	Frequency inverter	Schneider	ATV12 series	set	France
4	Alarm light	Schneider	XVGB3SM	piece	France
5	Photoelectric sensor	Leuze	PRK5 series	piece	Germany
6	Proximity switch	Leuze	IS 118MM series	piece	Germany
7	Air-pressure switch	Airtac	PK506	piece	Taiwan
8	Pressure filter	Airtac	GFR400	piece	Taiwan
9	Solenoid valve	Airtac	4V110	set	Taiwan
10	Encoder	Omron	E6B2	set	Japan
11	Relay	Omron	G6D-F4B-DC24V	set	Japan
12	Miniature circuit breaker	Schneider	OSMC series	set	France
13	Switch-mode power supply	Delta	DRP024V series	piece	Taiwan

FAQ

1.How long does it take to change over to a different pump cap size?

Changeover time depends on the machine model. Standard inline models typically take 10–20 minutes using hand knobs and quick-release fixtures, without the need for complex tools.

2.Can this machine handle both plastic and glass bottles?

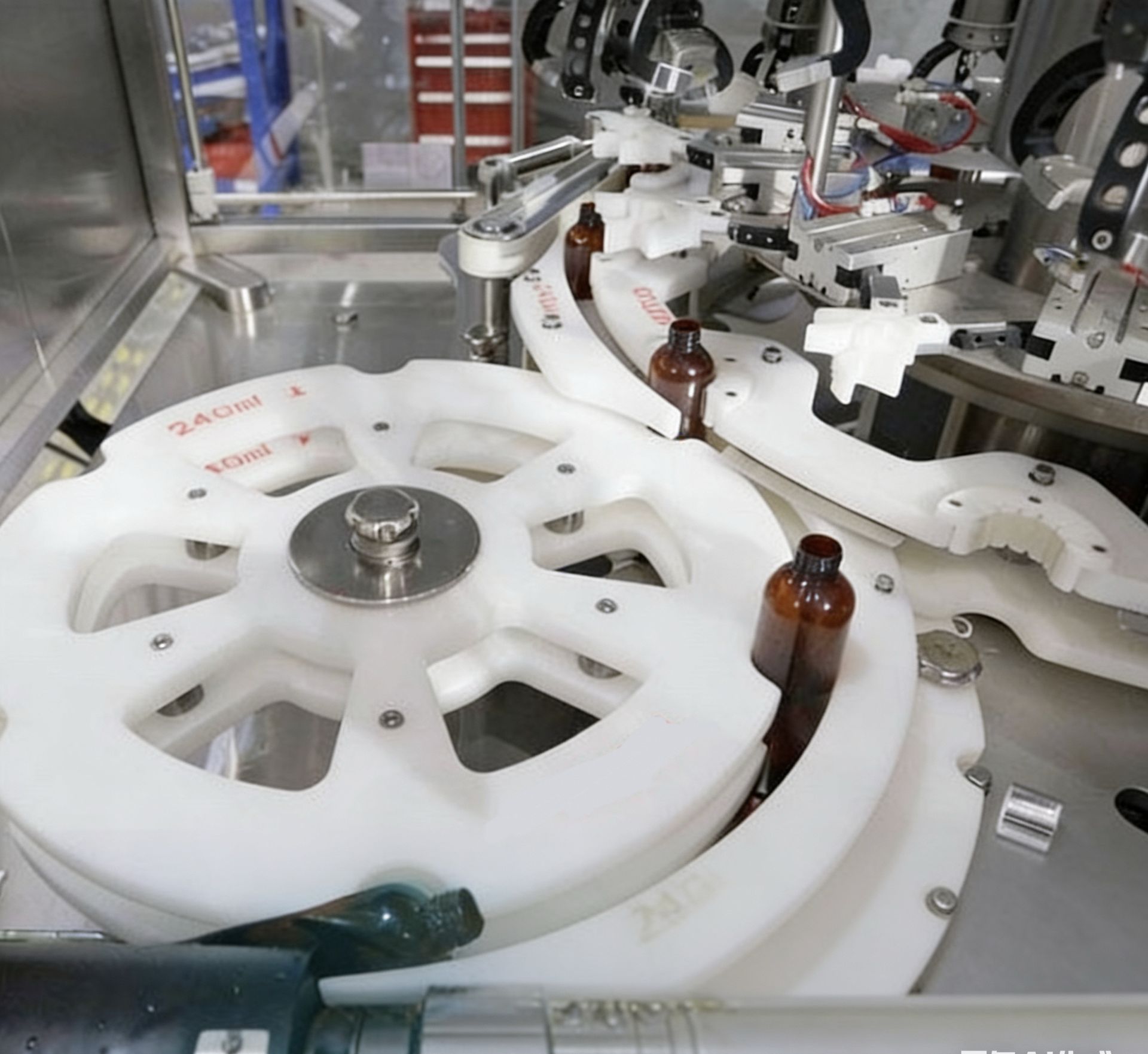

Yes. With customizable bottle handling parts and star wheels, the machine can securely handle plastic, glass, and metal containers with minimal adjustment.

3.Does the machine prevent the pump head from being scratched during tightening?

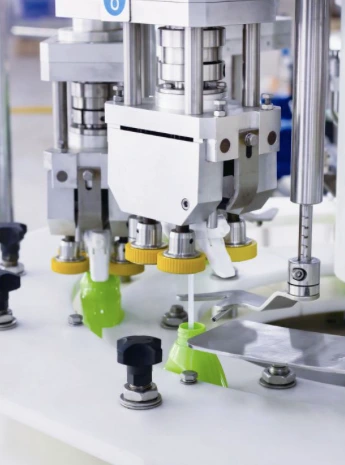

Yes. It is equipped with flexible, soft-touch gripping jaws and precise torque control to ensure the pump head and cap surface remain scratch-free while achieving a secure seal.

4.How does the machine handle pump caps with dip tubes?

The automatic pump capping machine features a dip tube guidance system that aligns and inserts the tube into the bottle neck before tightening. This prevents tube bending or trapping, ensuring proper function of the pump after capping.

5.What is the warranty period and after-sales support?

RUN-TECH provides a one-year warranty for the main machine (excluding wearing parts). We also offer remote troubleshooting, installation training, and global spare parts support to minimize your downtime.

6.Do you provide sample testing before shipment?

Yes. We can run your bottles and pump caps on the pump capping equipment and provide a test video and report for your approval before shipment.
