Intelligent Servo Controlled Rotary Filling Machine with 30 Nozzles for Liquid Bottles

The Automatic Liquid Filling Machine from RUN-TECH is engineered for medium to high speed packaging lines handling daily chemical, personal care goods, beauty cosmetics, fine chemicals and pesticides, as well as food and beverage products.

Filling Machine Servo Filling Machine Rotary Filling Machine

Application
- Daily Chemical & Personal Care
- Cosmetics & Beauty
- Food & Beverage
Container Type
- Flat/Square Bottles
- Round Bottles
Capacity
- At 330 ml: around 6,000 bottles/hour (glass cleaner )
Warranty Period
- 1 Year
Mchine Material
- 304/316 Stainless Steel

Specifications

Application	Daily Chemical & Personal Care, Cosmetics & Beauty, Food & Beverage
Container Type	Flat/Square Bottles, Round Bottles
Capacity	At 330 ml: around 6,000 bottles/hour (glass cleaner )
Warranty Period	1 Year
Mchine Material	304/316 Stainless Steel

Product Introduction

Rotary Liquid Filling Machine

· Automatic Filling and Material Supply

· Precise Volume Control for Consisten Fill Levels

· Suitable for Multiple Bottle and Viscosities

· Quick Changeover for Multiple Containers

· Sample-Based Customization

Discover Now

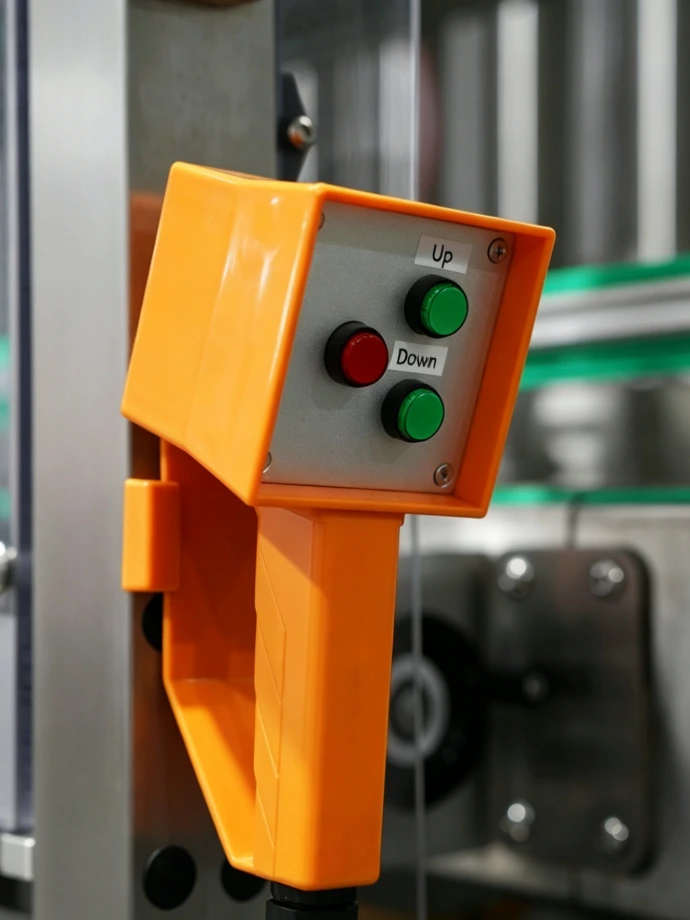

High-capacity 30-head rotary filling equipment with drip-free shut-off nozzles for daily chemicals

Intelligent servo-controlled rotary filling machine with 30 nozzles for lotion bottles

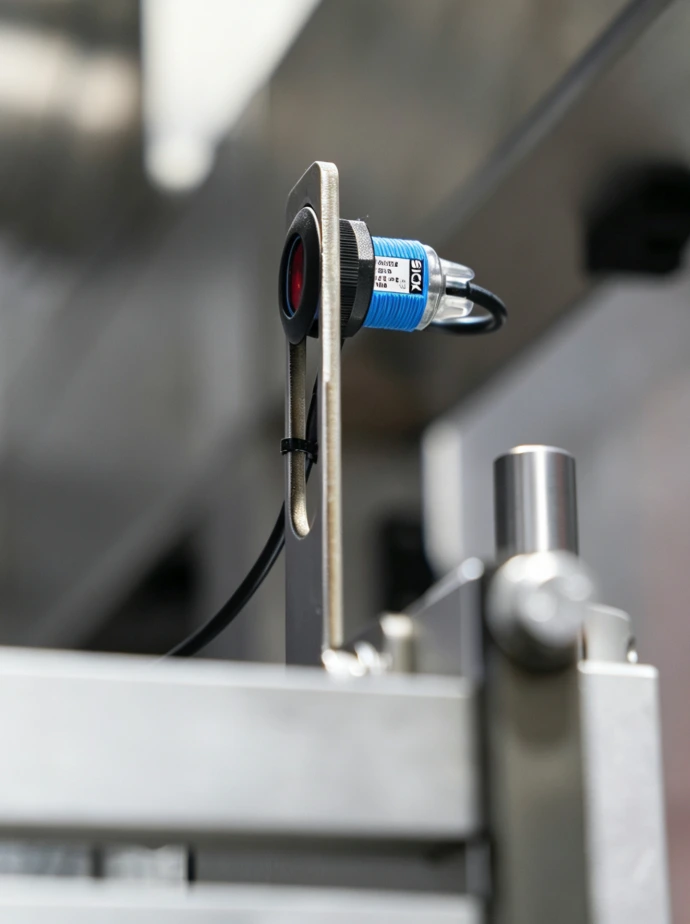

Precision servo-driven volumetric rotary filler with SUS316 sanitary contact parts

Basic Information

Automatic Rotary Liquid Filling Machine

The Automatic Servo Rotary Liquid Filling Machine from RUN-TECH is engineered for medium to high speed packaging lines handling daily chemical & personal care goods, beauty cosmetics, fine chemicals and pesticides, as well as food and beverage products.This filling machine is designed to handle a wide range of liquids and viscous products, ensuring accurate fill volumes and spill free operation across different container types.Whether you need a standalone filling machine or a fully integrated line, RUN-TECH's filling equipment connects seamlessly with capping, labeling, and conveyor systems. It reduces manual labor and delivers consistent, precise filling to maximize your production efficiency.

Rotary Liquid Filling Machine for Your Production Scale

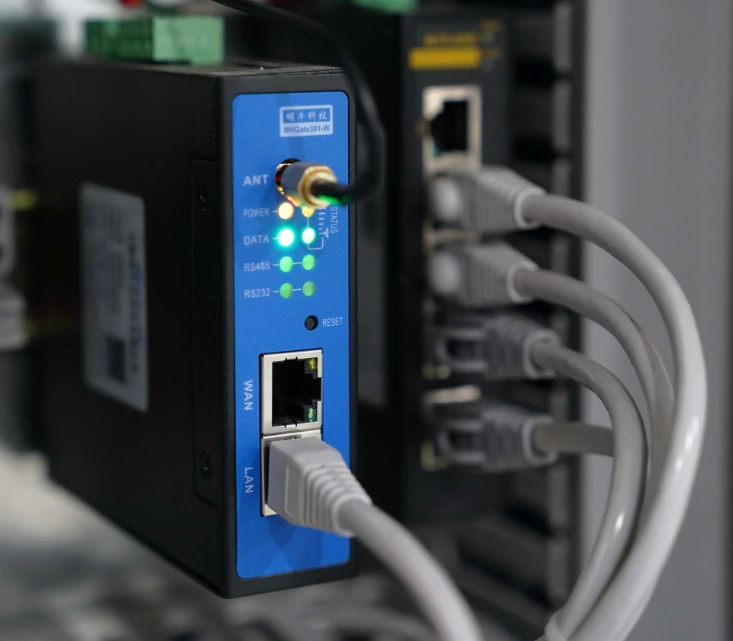

Automated high-speed lotion and cream packaging line machine with intelligent PLC control

1.Semi-Automatic Filling Machine

Ideal for low-volume or frequently changing production. Operators manually place the bottles, and the machine handles filling with consistent, motor controlled volume dosing.

2.Standard Inline Liquid Filling Machine

Best for medium capacity lines with mixed SKUs. This inline filling machine features quick changeover, compact footprint, and easy adjustment across different bottle sizes and products.

3. High-Speed Rotary Filling Machine

Built for large scale continuous production. This rotary filler uses synchronized bottle feeding and multiple filling stations to achieve high output with stable performance.

4. Customizable Filling Machine

Designed for special bottle shapes, unique container designs, or specific product characteristics. RUN-TECH provides tailored filling nozzles, fixtures, and feeding systems to meet specific packaging needs.

Technical Parameters for Rotary Liquid Filling Machine

Parameter	Source Specification
Application range	300-2000 ml water-like and viscous non-corrosive liquids
Container size	Diameter 60-150 mm; height 250-350 mm; special bottles can be customized
Filling accuracy	Below 1 kg: -3 to +4 g; 1-3 kg: -4 to +6 g. Conditions stated: uniform specific gravity, standing for more than 4 hours, and no bubbles.
Capacity	At 330 ml: around 6,000 bottles/hour (glass cleaner )
Power and source supply	2.2kw, 3-phase 380 VAC, 50 Hz
Air supply / consumption	At least 0.5 MPa clean, stable compressed air; no more than 0.3 m3/min
Main materials	Base plate/panel: carbon steel with stainless-steel facing; main construction: SUS304; product-contact parts: SUS316L
Communication interfaces	RS-485, Ethernet and USB
Noise	Less than 78 dB
Machine size (L x W x H)	2030 x 1,453 x 3,000 mm
Weight	Approximately 2020 kg
Hopper / cylinder / heads	Round hopper; 1000 ml cylinder; 8 filling heads
Conveyor	POM belt; source states width 83, with no unit stated

Automatic Rotary Liquid Filler Applications by Industry

1. Household & Institutional Cleaning Liquids

Laundry detergents, all purpose cleaners, and disinfectants demand neat, aligned sleeve labels on HDPE bottles. The Shrink Sleeve Labeling Machine delivers stable sleeving and precise label positioning for cylindrical and shaped plastic containers. RUN-TECH’s sleeve labeler helps brands and contract packagers achieve uniform sleeve presentation for laundry detergents, dish soaps, and surface disinfectants.

2. Personal Care & Body Wash Products

Shampoos, body washes, and hand sanitizers require smooth sleeve application without scratching printed bottle surfaces. This automatic sleeve labeler supports delicate label films and fast changeovers, suiting small batch production and frequent product and SKU switches.

3. Garden, Agricultural Liquid Products

Plant feeds, foliar fertilizers, and outdoor liquid treatments need durable sleeve labels that fit securely at medium to high line speeds. The Shrink Sleeve Labeling Machine maintains consistent label alignment, prevents film wrinkling, and works reliably with chemical resistant PVC/PETG sleeve materials.

4. Automotive & Industrial Maintenance Liquids

Car detailing sprays, degreasers, and workshop chemicals often use heavy duty, irregular shaped bottles. RUN-TECH’s sleeve labeling machine adopts adjustable centering fixtures and robust film feeding systems to keep accurate sleeve placement on bulky and non-standard containers.

5. Food & Beverage Products

Juices, sauces, dairy drinks and condiments require food grade sleeve films and clean labeling operation. The Shrink Sleeve Labeling Machine ensures tidy sleeve covering, avoids label offset, and meets hygiene standards for food packaging. It supports frequent format changes for assorted beverage and sauce containers.

Content Block for Lotion Filling Machine

Achieving Consistent Quality Beyond Volume Settings

Fill volume accuracy is only one indicator of good filling performance. Buyers also need to check fill level consistency, drip free nozzle condition, foaming or splashing during filling, and net content weight under approved bottle and product specifications. RUN-TECH presents machines based on measurable acceptance criteria, ensuring the automatic filler delivers reliable performance beyond the volume reading on the screen.

Rotary Filling Machine Performance by Accepted Output

An Automatic Filling Machine should be evaluated by consistent output of accepted products, not just rated speed. Actual output depends on bottle variation, product viscosity, fill volume range, and upstream/downstream line conditions. RUN-TECH works with buyers to define target production conditions and verifies the filling machine using approved samples before shipment. This gives you a reliable basis for capacity planning and line integration.

Configuration List

No.	Component	Brand	Unit
1	PLC	Siemens	set

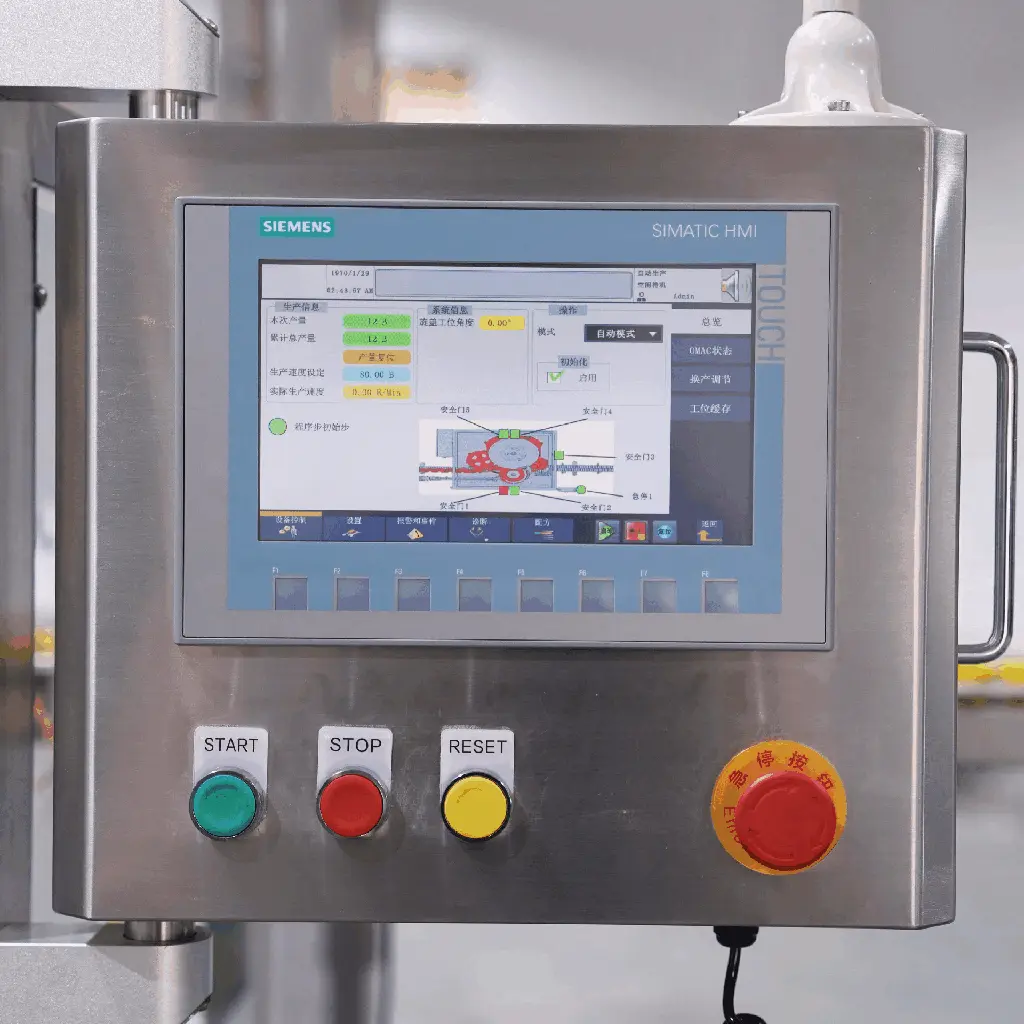

2	Touch screen	Siemens	set
3	Frequency inverter	Schneider / Danfoss	set
4	Servo system	Siemens	set
5	Push buttons	Schneider	piece
6	Alarm light	Schneider	piece
7	Photoelectric sensor	Leuze	piece
8	Proximity switch	Leuze	piece
9	Air-pressure switch	Airtac	piece
10	Pressure regulator/filter	Airtac	set

FAQ

1. How long does it take to change over to a different bottles?

Changeover typically takes 10–20 minutes using hand knobs and quick-release fixtures, without complex tools.

2.What products can it fill and what viscosity range?

The filling machine handles water like liquids, lotions, creams, gels, serums and shampoo, from low to high viscosity.

3.Can high viscosity products be filled and will it string?

Yes, the automatic rotary filler with a servo piston pump and rising anti stringing nozzle gives clean cutoff and residue free output.

4.What is the warranty period and after sales support?

RUN-TECH provides a one year warranty for the main machine (excluding wearing parts), plus remote troubleshooting, installation training, and global spare parts support.

5.Can I send samples for testing before ordering?

Yes. We can run your bottles and filling material on the lotion filling equipment and provide a test video and report.
