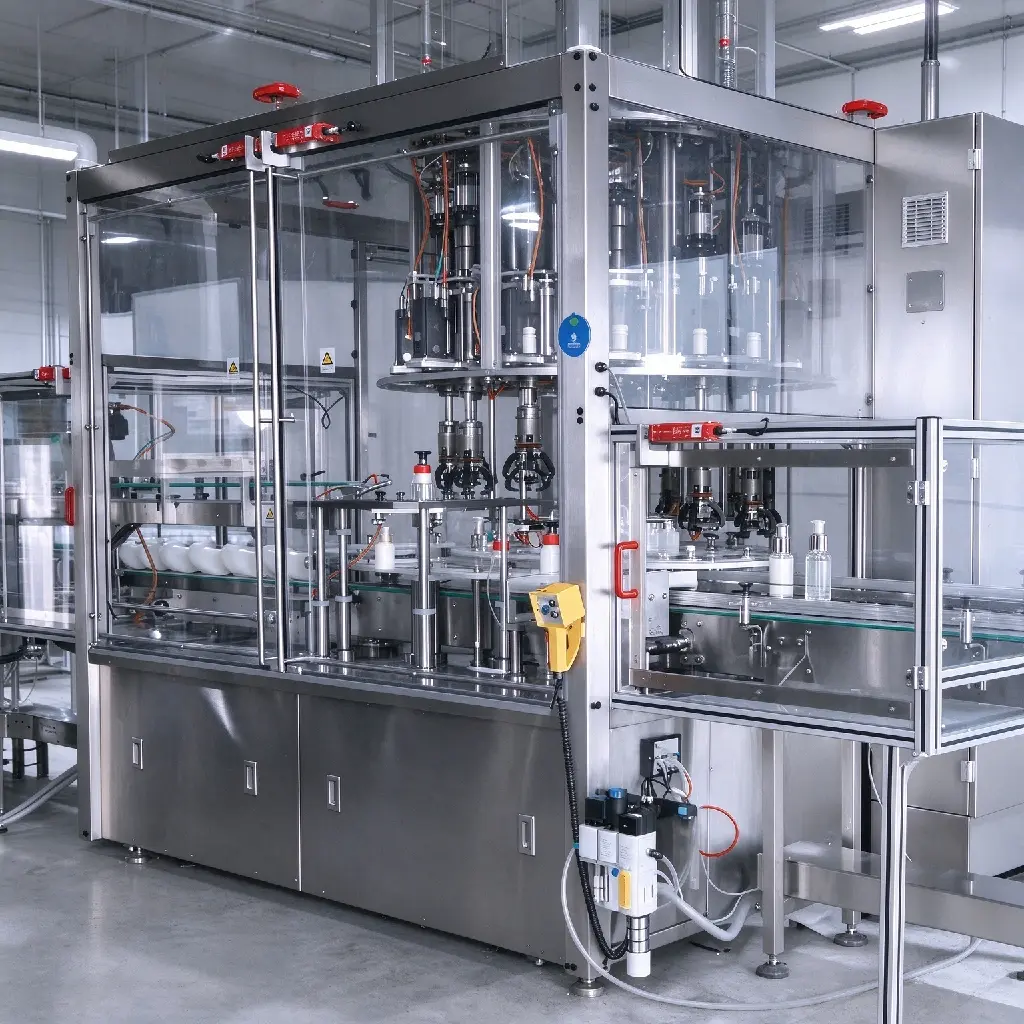

High Speed Pump Capping Machine for Personal Care Products

0 review
This High Speed Pump Capping Machine delivers rapid and stable tightening using a servo-driven system. It prevents leaks and pump head scratches to ensure a premium finish. Ideal for the personal care and daily chemical industries, this equipment efficiently packages shampoos, lotions, and body washes.
Pump Capping Machine High Speed Pump Capper
¥ 0.00 ¥ 0.00
  • Application
  • Capacity
  • capping method
  • Cap Style
  • Brand
Contact Us
Application Daily Chemical & Personal Care, Cosmetics & Beauty
Capacity 60-70b/min
capping method rotary capping type
Cap Style Trigger Cap/Pump Cap
Brand RUN-TECH

Product Introduction

High Speed Pump Capping Machine

· High-speed continuous capping for mass production

· Servo-controlled torque preventing liquid soap leakage

· Advanced dip tube guidance for long tubes

· Quick tool-free changeover for varied bottle shapes

· Compact hygienic design for cleanroom environments

Learn more

Basic Information

High Speed Pump Capping Machine

The High Speed Pump Capping Machine is purpose-built for the stringent packaging standards of the personal care industry. Unlike standard liquids, cosmetic lotions and serums require flawless exterior finishes and gentle handling. This Personal Care Products Capping Machine utilizes a servo-driven torque system and custom soft-touch gripping jaws. It securely tightens the caps at high speeds without leaving micro-scratches on the pump heads. Equipped with a compact footprint, this Cosmetic Pump Capper seamlessly integrates into existing production lines, significantly boosting your automated packaging efficiency while ensuring premium-grade output.

High Speed Pump Capping Machine for Your Production Scale

03

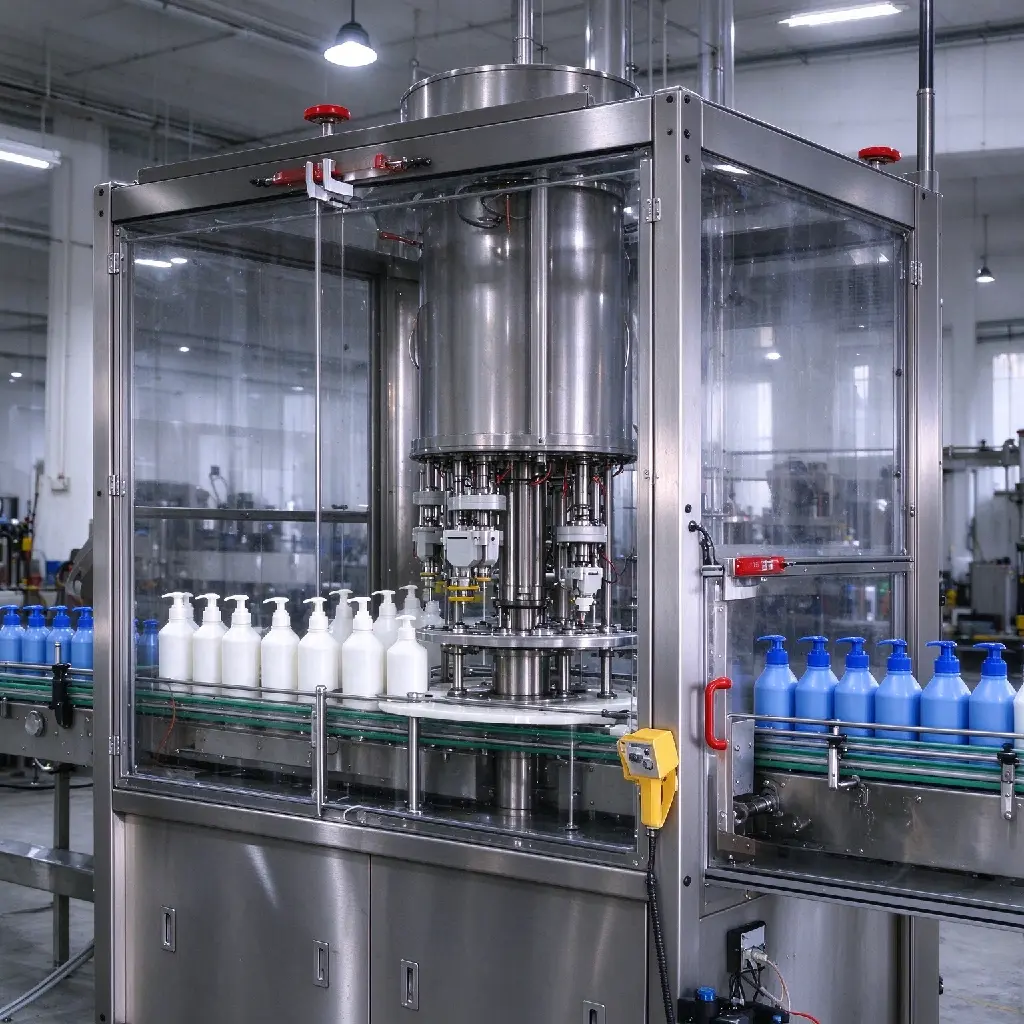

Rotary Heavy-Duty High-Speed Capper

Built for extreme throughput. The multi-station rotary platform achieves maximum speeds with ultra-low vibration, perfectly meeting the mass production demands of large cosmetic factories.

04

Turnkey High-Speed Capping System

A comprehensive solution integrating unscrambling, capping, and inspection. It ensures a fully automated, zero-manual-intervention workflow for premium packaging lines.

02

Flexible High-Speed Multi-Format Capper

Ideal for brands with frequent SKU changes. Features rapid tool-free changeovers and custom guide rails, allowing quick switches between different personal care bottle shapes.



01

Standard High-Speed Inline Capper

Suited for routine automated lines. Compact and continuous, it delivers stable high-speed capping to seamlessly replace manual labor in medium-volume production.



High Speed Pump Capping Machine Applications by Industry

2. Hair Care & Shower Gel Industry

Shampoos and shower gels often use long dip tubes. This Personal Care Products Capping Machine features precise guide rails and servo-driven heads to ensure the tube enters the bottleneck smoothly without bending or cross-threading.

1. Skincare & Facial Serums Industry

Serums and moisturizers require flawless finishes. This High Speed Capping Machine uses soft-touch jaws to firmly grip caps at high speeds, preventing any scratches on the pump heads and maintaining a premium retail appearance.

3. Oral Care & Hygiene Industry

Hand sanitizers and mouthwashes demand high hygiene standards. Built with stainless steel contact parts and an open frame, this Cosmetic Pump Capper is easy to clean and ensures airtight, leak-free seals.

4. Medical & Dermal Care Industry

Dermatological creams and medicated lotions require strict compliance. The Automatic High Speed Capping Machine delivers consistent torque control, ensuring a secure, tamper-evident seal that meets rigorous safety standards.

Technical Parameters of the High Speed Pump Capping Machine

Parameter

Source Specification

Applicable bottle

Customized according to customer requirements

Number of capping heads

8 heads

Main-machine dimensions - parameter table

2,000 x 1,800 x 2,950 mm (reference)

Main-machine dimensions - later source section

2,000 x 1,650 x 2,900 mm

Main-machine power

5 kW

Main-machine weight

4,000 kg

Torque-control method

Permanent-magnet clutch

Production capacity

55-60 bottles/minute

Required air supply

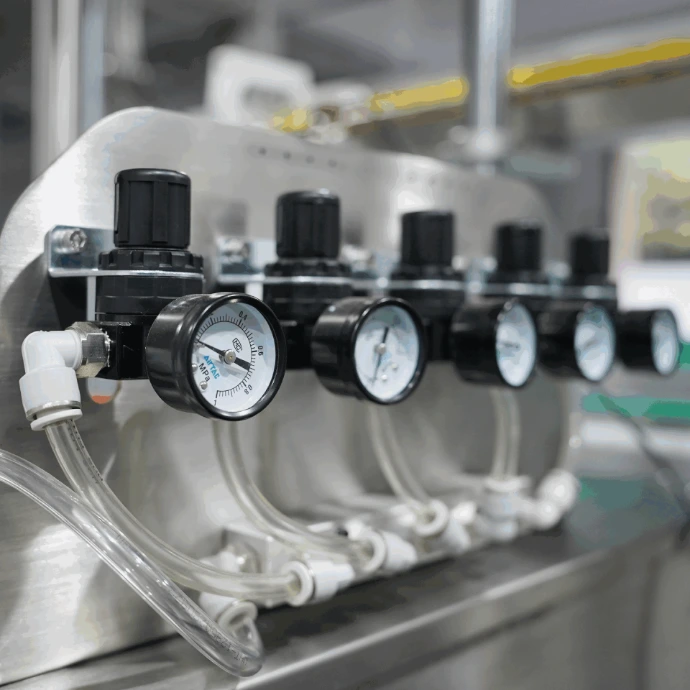

0.5-0.6 MPa clean, stable compressed air

Power supply

380 V, 50 Hz

Operating noise

80 dB measured within 1 m of the machine; later source section states less than 82 dB(A) under load

Conveyor height

950 +/- 50 mm

Adjustable conveyor width

50-100 mm

Compressed-air consumption

0.009 m3/min at the stated clean compressed-air requirement

Machine construction

Main body: SUS304, carbon steel and aluminum alloy; outer frame: SUS304 and acrylic doors; cap-contact parts: polyurethane

Performance & Quality

Protecting Delicate Packaging at Maximum Speeds

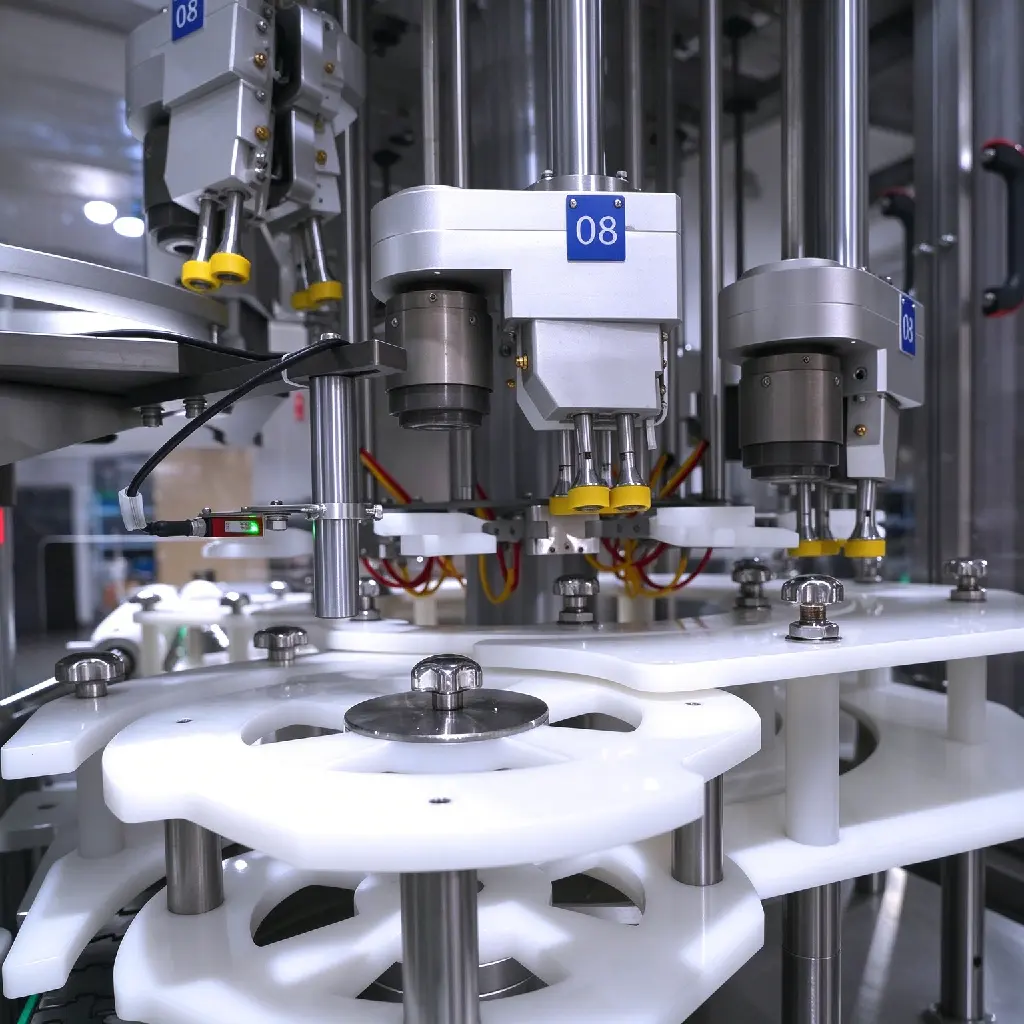

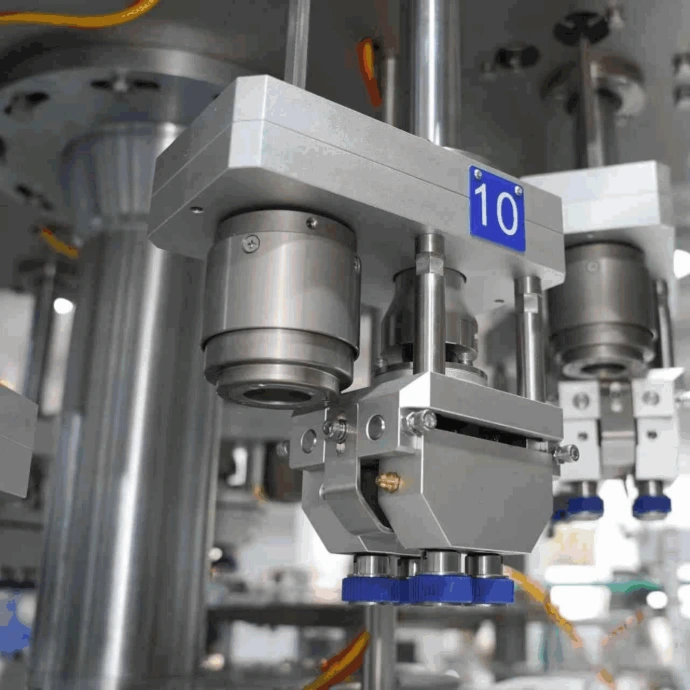

Personal care bottles are often made of soft plastics and feature highly polished caps. High-speed rotation can easily cause friction and scratches. This High Speed Pump Capping Machine utilizes custom-formulated soft-touch jaws and a synchronized clamping system. It holds the bottle steady and grips the cap gently, guaranteeing a scratch-free, premium finish at high speeds.

Ensuring Perfect Alignment for Long Dip Tubes

Serums and lotions often have long, flexible dip tubes that are prone to pinching. This Personal Care Products Capping Machine integrates a dynamic dip tube straightening mechanism before the servo-driven heads descend. It ensures the tube drops flawlessly into the bottle, eliminating cross-threading and product waste.

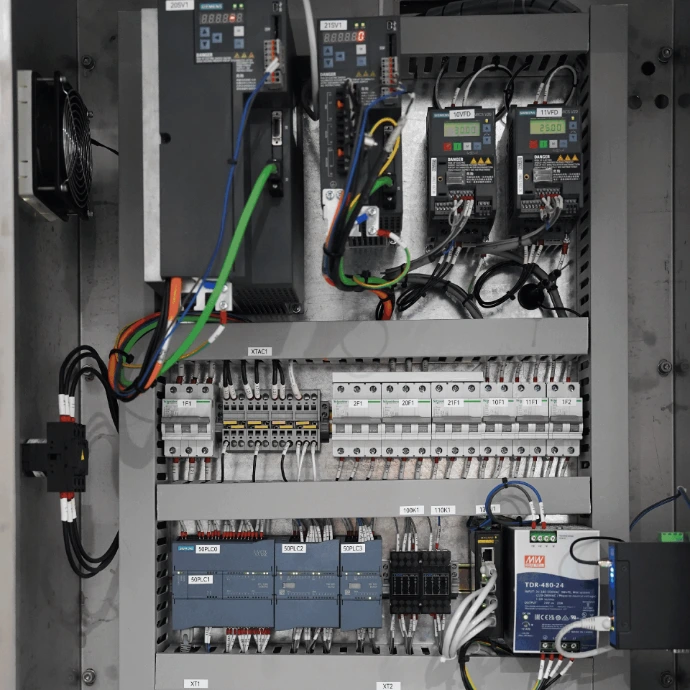

  1. Brand-Name Components of the High Speed Pump Capping Machine

No.

Component

Brand

Model

Unit

Origin

1

PLC

Siemens

S7-200 SMART

set

Germany

2

Touch screen

Siemens

SMART 1000 IE V3

set

Germany

3

Frequency inverter

Schneider

ATV12 series

set

France

4

Alarm light

Schneider

XVGB3SM

piece

France

5

Photoelectric sensor

Leuze

PRK5 series

piece

Germany

6

Proximity switch

Leuze

IS 118MM series

piece

Germany

7

Air-pressure switch

Airtac

PK506

piece

Taiwan

8

Pressure filter

Airtac

GFR400

piece

Taiwan

9

Solenoid valve

Airtac

4V110

set

Taiwan

10

Encoder

Omron

E6B2

set

Japan

11

Relay

Omron

G6D-F4B-DC24V

set

Japan

12

Miniature circuit breaker

Schneider

OSMC series

set

France

13

Switch-mode power supply

Delta

DRP024V series

piece

Taiwan

FAQ

1. Does high speed cause scratches on the delicate pump caps?

No. The machine is equipped with soft-touch gripping jaws and precise servo torque control, ensuring caps are held firmly without leaving any marks or scratches at high speeds.

2. Can it handle long dip tubes without bending them?

Yes. It features a dynamic dip tube straightening mechanism and synchronized bottle clamping to ensure the tube drops perfectly straight into the bottle.

3. How long does it take to change over to a different cosmetic bottle size?

Changeover typically takes 15-20 minutes using hand-wheel adjustments. No complex tools are required.

4. Is it suitable for cleanroom environments?

Yes. Its stainless steel construction, open-frame design, and smooth surfaces make it easy to clean and fully compliant with hygiene standards for personal care production.

5. What warranty and after-sales support do you provide?

We provide a one-year warranty for the main machine (excluding wearing parts) and lifelong technical support. Besides remote diagnosis and global spare parts supply, we can arrange engineers for on-site installation, commissioning, and operator training to ensure smooth start-up.
