Automatic Trigger Capper For Household Cleaner Trigger Spray Bottles

0 review
Engineered for high-speed production, this Automatic Trigger Capper is designed to securely tighten trigger spray caps on household cleaner bottles. Featuring precise servo torque control, this Trigger Capping Machine ensures leak-free sealing without damaging the delicate spray nozzles. Widely used in the daily chemical industry, it efficiently packages surface cleaners, disinfectants, and glass sprays.
Trigger Capping Machine Automatic Trigger Capper
¥ 0.00 ¥ 0.00
  • Application
  • capping method
  • Capacity
  • Control method
  • Warranty Period
Contact Us
Application Daily Chemical & Personal Care, Cosmetics & Beauty
Control method PLC, HMI
capping method rotary capping type
Capacity 60-70b/min
Warranty Period 1 Year

Product Introduction

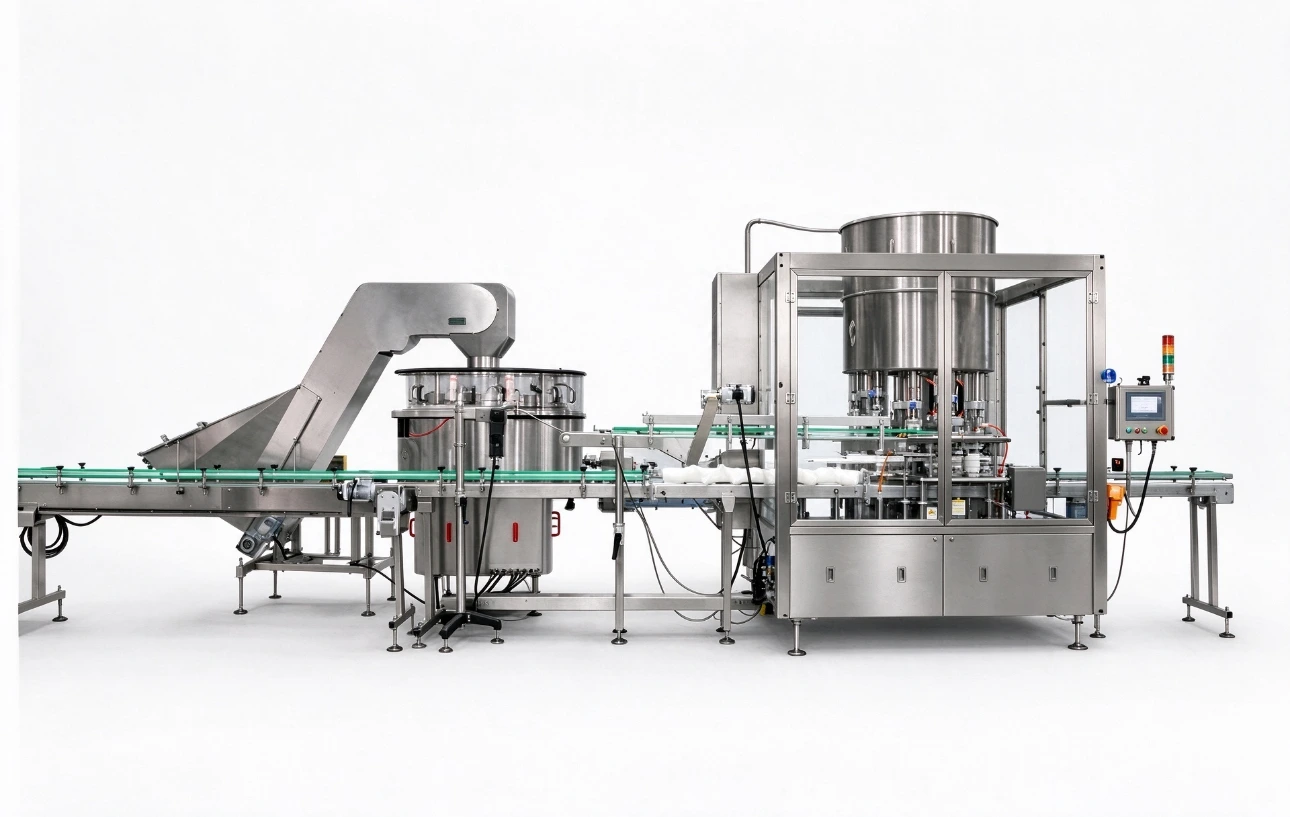

Automatic trigger capper for household cleaner and disinfectant spray bottles

Automatic Trigger Capper

· Automatic Trigger Cap Feeding

· Dip Tube Insertion Guidance

· Precision Capping Torque

· Customized for Household Cleaners

Button

Basic Information

Automatic Trigger Capper

The Automatic Trigger Capper for Household Cleaner Trigger Spray Bottles is engineered specifically for manufacturing and packaging lines handling surface cleaners, bathroom sprays, and kitchen degreasers. This Trigger Spray Capping Machine is designed to help brand manufacturers and OEM facilities smoothly transition from manual labor to automated production. The machine can operate as a standalone unit or seamlessly integrate with existing filling and labeling lines. It delivers high-speed, torque-accurate sealing without scratching the trigger heads, maximizing your efficiency for household cleaner packaging.

Automatic Trigger Capper for Your Production Scale

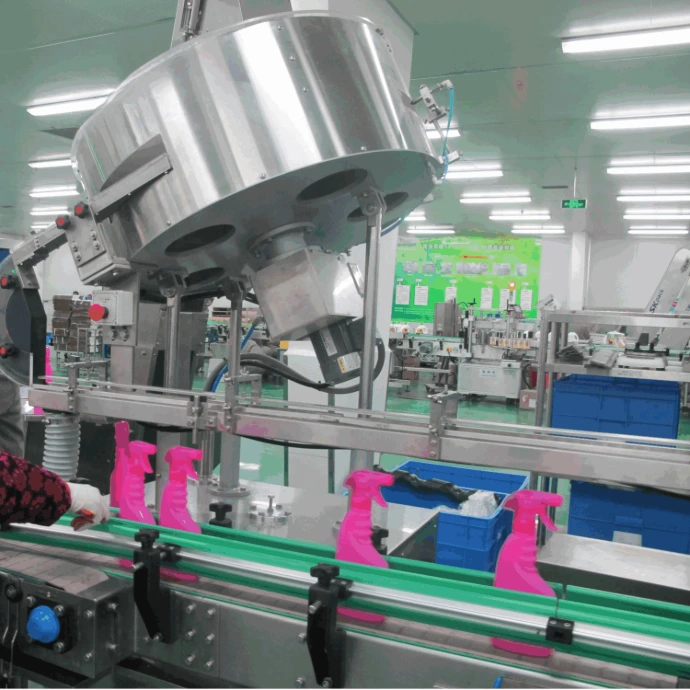

Industrial trigger sprayer capping machine with precise 360-degree nozzle orientation

1. Semi-Automatic Household Cleaner Capper

Designed for low capacity or frequent product changes. Operators manually place the trigger caps, while the machine uses motor-driven torque to ensure a stable seal.

2. Inline Trigger Spray Capping Machine

Suited for medium-capacity lines producing various household cleaners. It features compact adjustments for rapid, tool-free changeovers and smooth conveyor integration.

3. High-Speed Rotary Trigger Capper

Built for large-scale mass production of household sprays. The multi-station rotary platform synchronizes feeding and capping to achieve maximum throughput.

4. Customizable Trigger Spray Capper

Engineered for unique trigger designs or non-standard cleaner bottles. It offers tailored fixtures to adapt precisely to your specific packaging needs.

Automatic Trigger Capper Applications by Industry

1. Surface & Glass Cleaners

Trigger spray bottles are essential for dispensing fine mists. The Automatic Trigger Capping Machine ensures the trigger heads are securely sealed to prevent leakage during retail transport.

2. Bathroom & Kitchen Degreasers

These products often require heavy-duty triggers. This Household Cleaner Bottle Capper applies precise torque to prevent cross-threading on thick trigger threads, ensuring a tight seal.

3. Disinfectant & Sanitizing Sprays

Hygiene is critical. The stainless steel construction of this Trigger Spray Capping Equipment resists corrosion from chemical vapors while delivering consistent, airtight closure.


4. Multi-Purpose Cleaning Sprays

High-volume production demands reliability. The Automatic Trigger Capper operates continuously, adapting to various bottle geometries to keep your packaging line moving.


Technical Parameters of the Automatic Trigger Capper

Parameter

Source Specification

Applicable bottle

Customized according to customer requirements

Number of capping heads

8 heads

Main-machine dimensions - parameter table

2,000 x 1,800 x 2,950 mm (reference)

Main-machine dimensions - later source section

2,000 x 1,650 x 2,900 mm

Main-machine power

5 kW

Main-machine weight

4,000 kg

Torque-control method

Permanent-magnet clutch

Production capacity

55-60 bottles/minute

Required air supply

0.5-0.6 MPa clean, stable compressed air

Power supply

380 V, 50 Hz

Operating noise

80 dB measured within 1 m of the machine; later source section states less than 82 dB(A) under load

Conveyor height

950 +/- 50 mm

Adjustable conveyor width

50-100 mm

Compressed-air consumption

0.009 m3/min at the stated clean compressed-air requirement

Machine construction

Main body: SUS304, carbon steel and aluminum alloy; outer frame: SUS304 and acrylic doors; cap-contact parts: polyurethane

Content Block for Automatic Trigger Capper

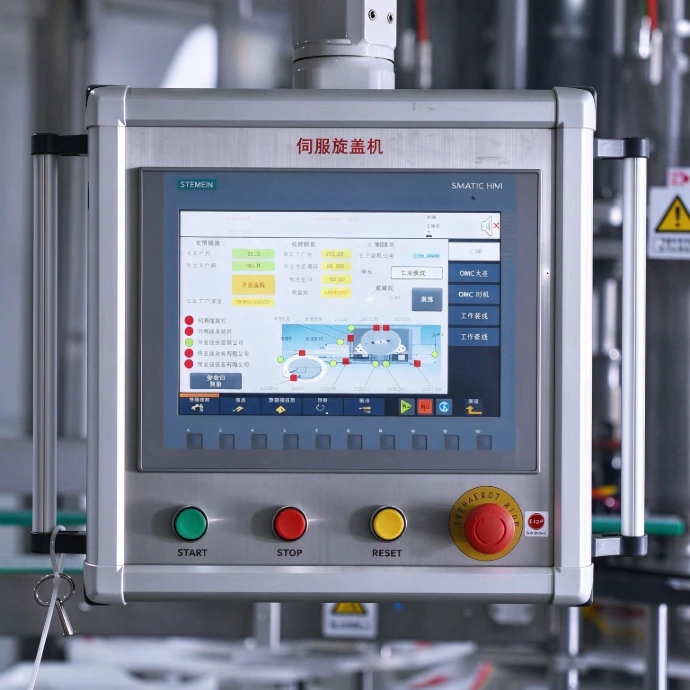

Gentle dip-tube insertion trigger pump capper designed for high-speed cleaner lines

Overcoming Bottleneck Residue & Slippage

During the filling of liquid household cleaners, foam or chemical residue frequently remains at the bottle neck. This Automatic Trigger Capper utilizes high-friction gripping jaws combined with precise servo torque control to lock the trigger cap securely. This specific design eliminates slipping or cross-threading caused by slippery liquid films, ensuring a completely leak-free seal even at maximum speeds.

Safeguarding Complex Triggers and Dip Tubes

Household trigger sprayers feature delicate nozzles and long dip tubes. The Trigger Spray Capping Machine is equipped with soft-touch protective heads and a specialized dip tube guide mechanism. This ensures the long tube is precisely aligned into the cleaner bottle before tightening, preventing tube pinching or structural damage to the trigger head. By integrating these protective features, the Household Cleaner Bottle Capper significantly minimizes product defects and ensures flawless retail shelf appearance.

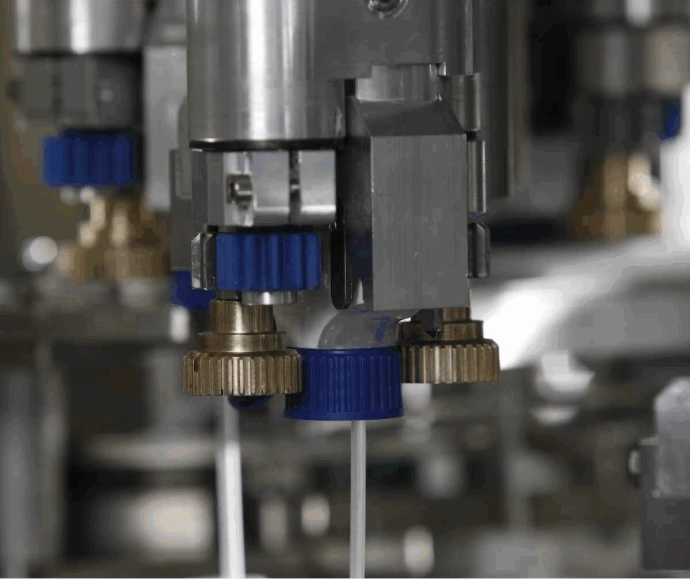

Heavy-duty stainless steel trigger bottle capping machine with adjustable torque control

Brand-Name Components of the Automatic Trigger Capper

No.

Component

Brand

Model

Unit

Origin

1

PLC

Siemens

S7-200 SMART

set

Germany

2

Touch screen

Siemens

SMART 1000 IE V3

set

Germany

3

Frequency inverter

Schneider

ATV12 series

set

France

4

Alarm light

Schneider

XVGB3SM

piece

France

5

Photoelectric sensor

Leuze

PRK5 series

piece

Germany

6

Proximity switch

Leuze

IS 118MM series

piece

Germany

7

Air-pressure switch

Airtac

PK506

piece

Taiwan

8

Pressure filter

Airtac

GFR400

piece

Taiwan

9

Solenoid valve

Airtac

4V110

set

Taiwan

10

Encoder

Omron

E6B2

set

Japan

11

Relay

Omron

G6D-F4B-DC24V

set

Japan

12

Miniature circuit breaker

Schneider

OSMC series

set

France

13

Switch-mode power supply

Delta

DRP024V series

piece

Taiwan

FAQ

1. Can this machine handle different sizes of household cleaner bottles?

Yes. The Automatic Trigger Capper features adjustable guide rails and handwheels, allowing quick changeovers for various bottle diameters and heights without special tools.

2. How does the machine prevent trigger caps from cross-threading?

The Trigger Spray Capping Machine uses a descending mechanism combined with servo torque control. It ensures the trigger cap is perfectly seated before tightening, eliminating cross-threading.

3. Do we need a corrosion-resistant version for bleach or acidic cleaners?

Yes. If your household cleaners contain strong chemicals, we can upgrade the wetted parts to SUS316L stainless steel and specialized seals to extend the machine's lifespan.

4. Does the liquid product affect trigger capping performance?

Yes. Filled volume, foam, residue around the neck, and bottle stability will affect the capping result. The Household Cleaner Bottle Capper features an anti-drip function to handle residual liquid around the neck.

5. Is the trigger feeding orientation the same as the final nozzle direction?

No. Feeding orientation positions the trigger for conveying, while final nozzle orientation requires the trigger direction to face a specific way after tightening. We offer separate orientation controls to meet your shelf-facing requirements.
